 Combine annotations with background bug		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

graphman

259 Posts
Posted - May 31 2013 :  03:07:51  Show Profile  Reply
We tested your new release and we found another fault.

I try explain to you what we do.

1) Cut out part of bitmap.

2) Paste this cut out to other place.

3) Insert new annotation (any).

4) Combine all annotations with background.

After that drawing is damaged.

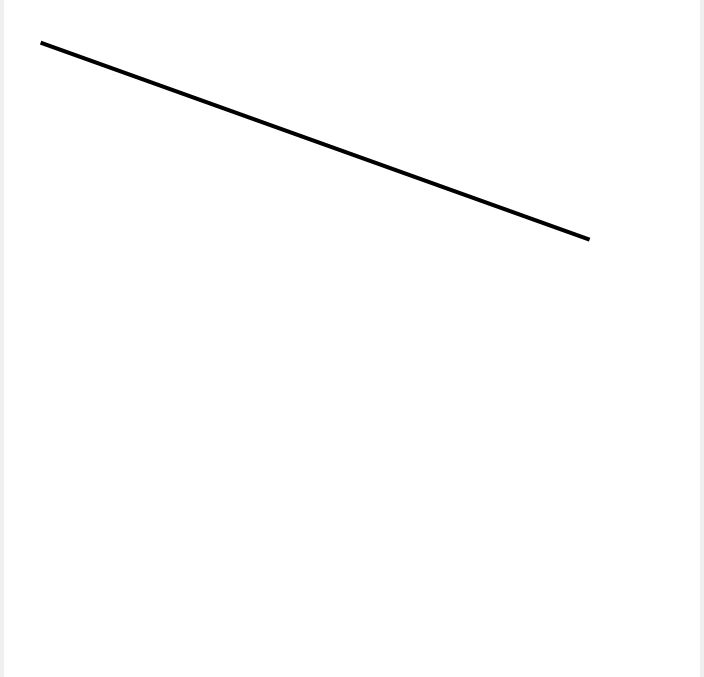

ORIGINAL

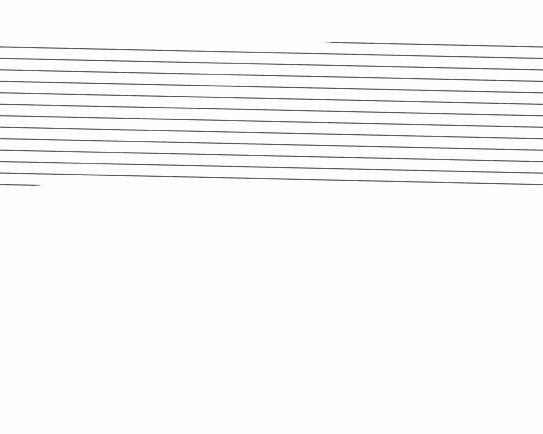

RESULT after combining

fab

1310 Posts
Posted - Jun 06 2013 :  00:26:30  Show Profile  Reply
There is a bug on copy/cut to clipboard and will be fixed in next minor release. Unfortunately copy/cut functions copied also an non-existent alpha channel that is copied back "on paste".
CopyObjectsToBack with native pixel format (last parameter = true) doesn't work with images having alpha channel, and this is the reason of the problem.

A workaround is to execute:

ImageEnVect1.RemoveAlphaChannel();
just before CopyObjectsToBack.

Or call CopyObjectsToBack with second parameter = false (MergeAlphaChannel):

ImageEnVect1.CopyObjectsToBack(true, false, false);

Hope this helps.
