Andreas
Netherlands
2 Posts |
 Posted - Dec 09 2011 : 08:02:54
|

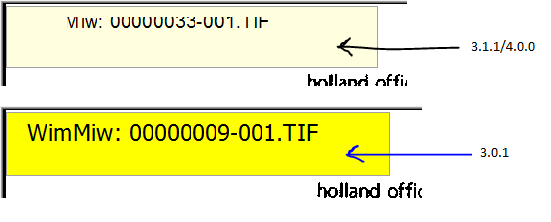

It seems the displayed margins in a memo-object are calculated incorrectly from TImageEnVect.ObjMemoMarginLeft/Right/Top/Bottom when zoomed-out. They were correctly calculated in version 3.0.1 but are incorrectly calculated in 3.1.1 The problem persists in 4.0.0.
The problem can be reproduced, using the following lines of code:
procedure TForm1.Button1Click(Sender: TObject);
var
lFileName: string;
lObjIdx: Integer;
lObjFont: TFont;
begin
if PromptForFileName(lFileName) then begin
ImageEnVect1.RemoveAllObjects;
ImageEnVect1.IO.LoadFromFileAuto(lFileName);
if ImageEnVect1.IO.Aborting then
raise Exception.Create('Invalid image');
lObjIdx := ImageEnVect1.AddNewObject;
ImageEnVect1.ObjKind[lObjIdx] := iekMemo;
ImageEnVect1.ObjBrushColor[lObjIdx] := clYellow; // clWebLightYellow;
ImageEnVect1.ObjBrushStyle[lObjIdx] := bsSolid;
ImageEnVect1.ObjMemoBorderColor[lObjIdx] := clMedGray;
ImageEnVect1.ObjPenColor[lObjIdx] := clBlack;
ImageEnVect1.ObjMemoMarginLeft[lObjIdx] := 5;
ImageEnVect1.ObjMemoMarginTop[lObjIdx] := 5;
ImageEnVect1.ObjMemoMarginRight[lObjIdx] := 5;
ImageEnVect1.ObjMemoMarginBottom[lObjIdx] := 5;
ImageEnVect1.ObjTextAlign[lObjIdx] := iejLeft;
ImageEnVect1.ObjTextEditable[lObjIdx] := False;
lObjFont := TFont.Create;
try
lObjFont.Color := clBlack;
lObjFont.PixelsPerInch := 300;
lObjFont.Size := 15;
lObjFont.Name := 'Tahoma'; // 'Tahoma Bold';
// lObjFont.PixelsPerInch := 110;
// lObjFont.Size := 30;
// lObjFont.Name := 'Verdana Bold';
ImageEnVect1.SetObjFont(lObjIdx, lObjFont);
finally
lObjFont.Free;
end;
ImageEnVect1.ObjText[lObjIdx] := AnsiString('WimMiw: ' + ExtractFileName(lFileName));
ImageEnVect1.ObjTop[lObjIdx] := 10;
ImageEnVect1.ObjLeft[lObjIdx] := 10;
ImageEnVect1.ObjWidth[lObjIdx] := 1200;
ImageEnVect1.ObjHeight[lObjIdx] := 200;
end;
end;
359.46 KB
I have noticed TIETextControl.PaintTo has changed between 3.0.1 and 3.1.1 and changing it back (remove PaintableRect-var etc.) to code similar to 3.0.1 fixes the problem.
Please could you inform me if other code is required for ImageEn-versions >= 3.1.1 or whether the behavior is just a bug?
Regards,
Andreas |
|
