TIOParams.TIFF_Compression

Declaration

property TIFF_Compression: TIOTIFFCompression;

Description

Specifies the compression type for TIFF images.

Note:
◼If you are using a TIEMultiBitmap or TImageEnMView, you can use DuplicateCompressionInfo to propagate the parameter to all frames
◼If you are saving an image with an alpha channel, the compression must be set to ioTIFF_Uncompressed to preserve the alpha channel
◼With ioTIFF_JPEG compression, specify the quality with TIFF_JPEGQuality

Default: ioTIFF_Uncompressed

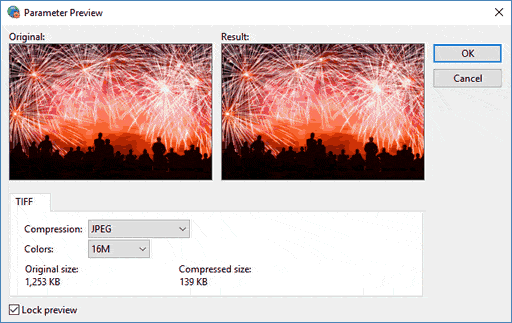

Demo

Examples

// Save monochrome TIFF in G4 Fax format
ImageEnView1.IO.Params.TIFF_Compression := ioTIFF_G4Fax;
ImageEnView1.IO.Params.BitsPerSample := 1;
ImageEnView1.IO.Params.SamplesPerPixel := 1;
ImageEnView1.IO.SaveToFile('D:\output.tif');


// Save TIFF as 32bit gray-scale (ie32f)
// Note: Compression must be: ioTIFF_Uncompressed, ioTIFF_LZW, ioTIFF_PackBits or ioTIFF_Zip
ImageEnView1.LegacyBitmap := False;
ImageEnView1.IEBitmap.PixelFormat := ie32f;
ImageEnView1.IO.Params.BitsPerSample := 32;
ImageEnView1.IO.Params.SamplesPerPixel := 1;
ImageEnView1.IO.Params.TIFF_PhotometInterpret := ioTIFF_BlackIsZero;
ImageEnView1.IO.Params.TIFF_Compression := ioTIFF_Uncompressed;
ImageEnView1.IO.SaveToFileTIFF('D:\GrayTiff32.tiff');


// Save a PNG with alpha to TIFF
ImageEnView1.IO.LoadFromFile( 'D:\Alpha.png' );
ImageEnView1.IEBitmap.PixelFormat             := ie24RGB;
ImageEnView1.IO.Params.TIFF_PhotometInterpret := ioTIFF_RGB;
ImageEnView1.IO.Params.SamplesPerPixel        := 4;
ImageEnView1.IO.Params.BitsPerSample          := 8;
ImageEnView1.IO.Params.TIFF_Compression       := ioTIFF_Uncompressed;
ImageEnView1.IO.SaveToFile( 'D:\Alpha.TIFF' );


// Save with JPEG compression
ImageEnView1.IO.Params.TIFF_Compression := ioTIFF_JPEG;
ImageEnView1.IO.Params.TIFF_JPEGQuality := 85;

See Also

◼DuplicateCompressionInfo
◼TIFF_JPEGQuality

---
