IEShowImageInfo

Declaration

// IOParams overload
function IEShowImageInfo(Params: TIOParams;
                         ShowTabs: TIEInfoTabs = [];
                         const Caption: string = '';
                         PreviewWidth: Integer = -1; PreviewHeight: Integer = -1;
                         Maximized: Boolean = False;
                         MapProvider: TIESlippyMapProvider = iesmpOSM_Mapnik;
                         MapZoom: Integer = 12;
                         MapCachePath: string = '';
                         MapApiKey: string = '';
                         ReadOnly: Boolean = True): Boolean; overload;

// IEBitmap overload
function IEShowImageInfo(Bitmap: TIEBitmap;
                         ShowTabs: TIEInfoTabs = [];
                         const Caption: string = '';
                         PreviewWidth: Integer = -1; PreviewHeight: Integer = -1;
                         Maximized: Boolean = False;
                         MapProvider: TIESlippyMapProvider = iesmpOSM_Mapnik;
                         MapZoom: Integer = 12;
                         MapCachePath: string = '';
                         MapApiKey: string = '';
                         ReadOnly: Boolean = True): Boolean; overload;

// File overload
function IEShowImageInfo(const Filename: string;
                         ShowTabs: TIEInfoTabs = [];
                         const Caption: string = '';
                         PreviewWidth: Integer = -1; PreviewHeight: Integer = -1;
                         Maximized: Boolean = False;
                         MapProvider: TIESlippyMapProvider = iesmpOSM_Mapnik;
                         MapZoom: Integer = 12;
                         MapCachePath: string = '';
                         MapApiKey: string = '';
                         ReadOnly: Boolean = True): Boolean; overload;

// Meta-Data only overload
function IEShowImageInfo(Params: TIOParams; const Caption: string;
                         AutoShowTypes: TIEMetaTypes = [];
                         AlwaysShowTypes: TIEMetaTypes = [];
                         ReadOnly: Boolean = True;
                         PreviewWidth: Integer = -1; PreviewHeight: Integer = -1;
                         Maximized: Boolean = False): Boolean; overload;

// TImageEnView or TImageEnMView overload
function IEShowImageInfo(const Viewer: TIEView;
                         ShowTabs: TIEInfoTabs = [];
                         const Caption: string = '';
                         PreviewWidth: Integer = -1; PreviewHeight: Integer = -1;
                         Maximized: Boolean = False;
                         MapProvider: TIESlippyMapProvider = iesmpOSM_Mapnik;
                         MapZoom: Integer = 12;
                         MapCachePath: string = '';
                         MapApiKey: string = '';
                         ReadOnly: Boolean = True): Boolean; overload;

Description

Display a pop-up window to show meta-data and other information about the image.

The following tabs are available:

Value	Description

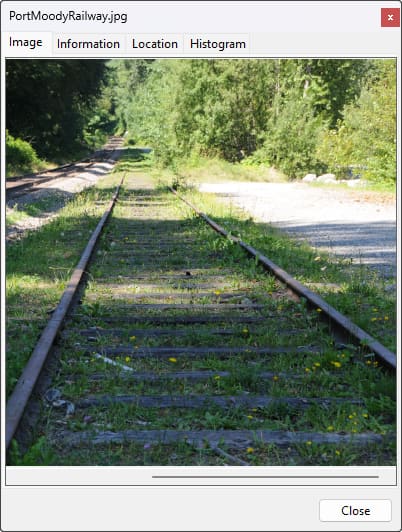

ietImage	Show a zoomable preview of the image
ietMetaData	Show an editable list view of the EXIF, IPTC, XMP and other meta-data of the image

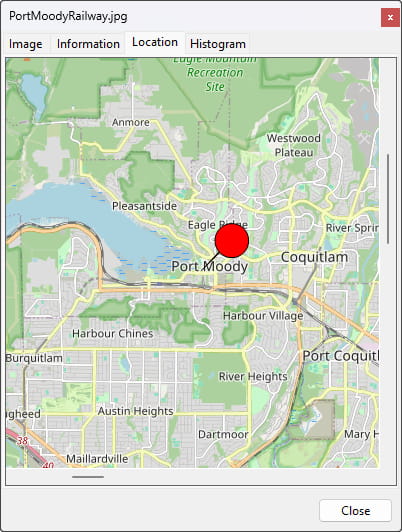

ietLocation	Show an interactive map of the location of the image using the EXIF GPS data
ietHistogram	Show a histogram of the image

Parameter	Description
Filename/Bitmap/Params	The source of the image information
ShowTabs	Which of the tabs above to display (tabs that are not relevant will be automatically excluded, e.g. ietLocation for images with no GPS data). Specify [] for all tabs
Caption	The heading for the window (defaults to the image filename if '' is specified)
AutoShowTypes	They types of meta-data to show (if the file includes that type). If [] is specified then all available types will be shown
AlwaysShowTypes	They types of meta-data to show even if the file does not include that type (will be shown with blank entries)
ReadOnly	If true, the user can edit EXIF, DICOM or IPTC fields, and OK and Cancel buttons are displayed. Changes made by users will update the values in the Params objects. You will need to save the image to file to keep the changes
PreviewWidth, PreviewHeight	The size of the display window. If -1 it will be made the same as the image (though it will be shrunk to ensure it is no larger than the screen)
Maximized	Set to true to display the window in a maximized state
MapZoom	Specifies the zoom level (0-...). Level 0 is the minimum zoom (supported by all map providers) which is the most zoomed out (country level). Maximum zoom is map provider specific, but high values, e.g. 18, are most zoomed in (street level). See TIESlippyMapProvider for maximum value for each map provider.
MapProvider	Specifies a Predefined map provider
MapCachePath	If specified, maps are saved to the specified path to speed up reuse
MapApiKey	Specifies the user key for map providers that requires registration

Result is true if the data is modified (ReadOnly = False). If ReadOnly = True the result is always true.

Note:
◼The background style of the image preview is defined by PreviewImageBackgroundColor and PreviewImageBackgroundStyle
◼You can also show an image preview using IEShowImagePreview

Demo

Demos\ImageEditing\EveryMethod\EveryMethod.dpr

Examples

// Show preview, meta-information, map and histogram for a file
IEShowImageInfo( 'D:\MyImage.jpg' );

// Show for image loaded into a TImageEnView
IEShowImageInfo( ImageEnView1 );

// Show for the seleted image in a TImageEnMView
IEShowImageInfo( ImageEnMView1 );

// Show a maximized Info window for a file (Location tab is selected - Only appears if image contains EXIF GPS data)
IEShowImageInfo( ImageEnView1.IO.Params, [], '', -1, -1, True );

// Prompt user to add or edit exif data
if IEShowImageInfo( ImageEnView1.IO.Params, 'Edit EXIF', [], [iemEXIF], False, -1, -1, True ) = True then
btnSaveChanges.Enabled := True;

// Show meta-data only
IEShowImageInfo( ienResult.IO.Params, [ ietMetaData ]);

// Which is the same as... (meta-data overload)
IEShowImageInfo( ienResult.IO.Params, '' );
