TImageEnProc.TextOutEx
Declaration
// Full Overloadfunction TextOutEx(X, Y, W, H : Integer;
const Text: WideString;
Font: TFont;
TextAngle: Integer = 0;
TextAlign: TIEAlignment = iejLeft;
TextLayout: TIELayout = ielTop;
// Advanced Styling
TextBorderWidth: Integer = 0;
TextBorderColor: TColor = clBlack;
TextFillTransparency1: Integer = 255;
TextFillTransparency2: Integer = 255;
TextFillColor2: TColor = clRed;
TextFillGradient: TIEGDIPlusGradient = gpgNone;
// Background Shape
FrameShape: TIEShape = iesRectangle;
FrameWidth: Integer = 0;
FrameBorderColor: TColor = clBlack;
FrameFillColor: TColor = clNone;
FrameFillColor2: TColor = clRed;
FrameFillGradient: TIEGDIPlusGradient = gpgNone;
FrameMargin: Double = 0.50;
TextVertOffset: Double = 0;
// Other parameters
WordWrap: Boolean = False;
AutoShrink: boolean = False;
AntiAlias: Boolean = True;
CalculateOnly: Boolean = False
): TSize; overload;
// Advanced text styling overload
function TextOutEx(X, Y, W, H : Integer;
const Text: WideString;
Font: TFont;
TextAngle: Integer;
TextAlign: TIEAlignment;
TextLayout: TIELayout;
// Advanced Styling
TextBorderWidth: Integer;
TextBorderColor: TColor;
TextFillTransparency1: Integer;
TextFillTransparency2: Integer;
TextFillColor2: TColor;
TextFillGradient: TIEGDIPlusGradient;
// Other parameters
WordWrap: Boolean;
AutoShrink: boolean = False;
AntiAlias: Boolean = True;
CalculateOnly: Boolean = False
): TSize; overload;
// Background shape overload
function TextOutEx(X, Y, W, H : Integer;
const Text: WideString;
Font: TFont;
TextAngle: Integer;
TextAlign: TIEAlignment;
TextLayout: TIELayout;
// Background Shape
FrameShape: TIEShape;
FrameWidth: Integer = 0;
FrameBorderColor: TColor = clBlack;
FrameFillColor: TColor = clNone;
FrameFillColor2: TColor = clRed;
FrameFillGradient: TIEGDIPlusGradient = gpgNone;
FrameMargin: Double = 0.50;
TextVertOffset: Double = 0;
// Other parameters
WordWrap: Boolean = False;
AutoShrink: boolean = False;
AntiAlias: Boolean = True;
CalculateOnly: Boolean = False
): TSize; overload;
Description
Draw text at a specified position with advanced options, including:◼ Outlined text (text has a border and optional fill)
◼ Background frame of many shapes and gradients
◼ Auto-shrinking of wide text
For a simpler method, use: TextOut. Also see: AdvancedDrawText
Text Properties
| Parameter | Description |
|---|---|
| X | Horizontal position. Either a pixel value or one of the following constants: Align_Text_Left, Align_Text_Near_Left, Align_Text_Horz_Center, Align_Text_Near_Right or Align_Text_Right |
| Y | Vertical position. Either a pixel value or one or one of the following constants: Align_Text_Top, Align_Text_Near_Top, Align_Text_Vert_Center, Align_Text_Near_Bottom or Align_Text_Bottom |
| W | The maximum width for the text output. This will enforce text wrapping and auto-shrinking, and also specify the bounds for the TextAlign property |
| H | The maximum height for the text output. This will enforce auto-shrinking, and also specify the bounds for the TextLayout property |
| Text | The string to output |
| Font | The font for the text (you might want to create a temporary TFont object, or use ImageEnView1.IEBitmap.Canvas.Font ) |
| TextAngle | The rotation of the text in in degrees counter-clockwise, e.g. -45 will draws text diagonally downwards |
| TextAlign | The horizontal alignment of the text within the rect of the specified width. Specify iejLeft to position at X * |
| TextLayout | The vertical alignment of the text within the rect of the specified height. Specify ielTop to position at Y * |
Advanced Text Styling
| Parameter | Description |
|---|---|
| TextBorderWidth | If not 0 the text will have a colored border of the specified width |
| TextBorderColor | The color of the text border |
| TextFillTransparency1 | The transparency of the text fill (the color is specified by Font.Color) |
| TextFillTransparency2 | The transparency of the secondary fill (if the text fill has a gradient) |
| TextFillColor2 | The color of the secondary fill (if the text fill has a gradient). The fill color is specified by Font.Color. gpgNone specifies no gradient |
| TextFillGradient | The direction of the gradient for the text fill (from Font.Color to TextFillColor2) |
Text Background Frame
| Parameter | Description |
|---|---|
| FrameShape | The shape of frame |
| FrameWidth | If not 0 then there will be a shape drawn behind the text of the specified width |
| FrameBorderColor | The color of the frame border (or clNone for no border) |
| FrameFillColor | The color of the frame fill (or clNone for no fill) |
| FrameFillColor2 | The color of the secondary fill (if the frame fill has a gradient) |
| FrameFillGradient | The direction of the gradient for the frame fill (from FrameFillColor to FrameFillColor2). gpgNone specifies no gradient |
| FrameMargin | Specifies the amount to increase the size of the shape (if width and height are auto-calculated) so the border does not overlap the text. This value is a percentage, e.g. 0.50 adds margins of 50% of the text width and height |
| TextVertOffset | Shifts the drawing of text up or down. This is a percentage value with positive and negative values, so -0.10, moves the text up 10% of the layer height. 0.50 will shift halfway down. direction of the gradient for the frame fill (from FrameFillColor to FrameFillColor2). gpgNone specifies no gradient |
Other Parameters
| Parameter | Description |
|---|---|
| WordWrap | If true, and the text is wider than the W value, it will wrap onto the next line * |
| AutoShrink | If True, and the text is larger than the rect specified by W x H, the font size will be reduced until it fits * |
| AntiAlias | True uses best quality font. False uses an anti-aliased one |
| CalculateOnly | If true, the text is not drawn, just the output size returned as the result |
Result is the size of the text in pixels.
Demo
 | Demos\ImageEditing\DrawText\DrawText.dpr |
Examples
aFont := TFont.Create;aFont.Name := 'Tahoma';
aFont.Size := 14;
aFont.Style := [fsBold];
ImageEnView1.Proc.TextOutEx( 100, 100, 250, 100,
'EXPLOSION!', aFont,
0, iejCenter, ielCenter,
iesExplosion, 1, clBlack,
clRed, clYellow, gpgVertCenter );
aFont.Free;
aFont := TFont.Create;
aFont.Name := 'Tahoma';
aFont.Size := 22;
aFont.Style := [fsBold];
ImageEnView1.Proc.TextOutEx( 100, 100, 230, 200,
'I Heart Delphi', aFont,
0, iejCenter, ielCenter,
iesHeart, 0, clNone_, $004646FF,
clRed, gpgNone, -0.15 );
aFont.Free;

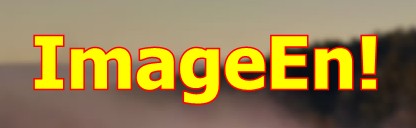

// Yellow text with red border
aFont := TFont.Create;
aFont.Name := 'Tahoma';
aFont.Size := 54;
aFont.Style := [fsBold];
aFont.Color := clYellow;
ImageEnView1.Proc.TextOutEx( 100, 100, 0, 0,
'ImageEn!', aFont,
0, iejLeft, ielTop,
3, clRed, 255, 255, clBlack, gpgNone );
aFont.Free;

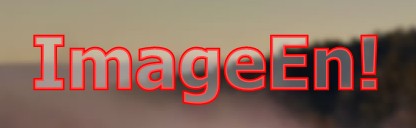

// Semi-transparent white text with red border
aFont := TFont.Create;
aFont.Name := 'Tahoma';
aFont.Size := 54;
aFont.Style := [fsBold];
aFont.Color := clYellow;
ImageEnView1.Proc.TextOutEx( 100, 100, 0, 0,
'ImageEn!', aFont,
0, iejLeft, ielTop,
3, clRed,
IEOpacityToAlpha( 30 ), // 30% opaque
255, clBlack, gpgNone );
aFont.Free;
// Transparent text with yellow border
aFont := TFont.Create;
aFont.Name := 'Tahoma';
aFont.Size := 54;
aFont.Style := [fsBold];
aFont.Color := clYellow;
ImageEnView1.Proc.TextOutEx( 100, 100, 0, 0,
'ImageEn!', aFont,
0, iejLeft, ielTop,
3, clYellow,
0, // 100% transparent
255, clBlack, gpgNone );
aFont.Free;
// Gradient text with border
aFont := TFont.Create;
aFont.Name := 'Tahoma';
aFont.Size := 54;
aFont.Style := [fsBold];
aFont.Color := clRed;
ImageEnView1.Proc.TextOutEx( 100, 100, 0, 0,
'ImageEn!', aFont,
0, iejLeft, ielTop,
3, clBlack,
255, 255, clYellow, gpgVertical );
aFont.Free;

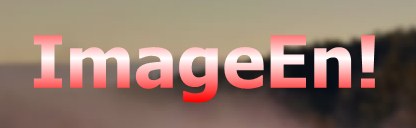

// Centered gradient text without border
aFont := TFont.Create;
aFont.Name := 'Tahoma';
aFont.Size := 54;
aFont.Style := [fsBold];
aFont.Color := clRed;
ImageEnView1.Proc.TextOutEx( 100, 100, 0, 0,
'ImageEn!', aFont,
0, iejLeft, ielTop,
0, clBlack,
255, 255, clWhite, gpgVertCenter );
aFont.Free;

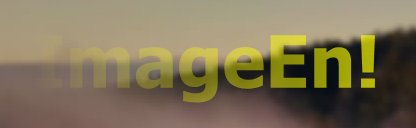

// Text with gradient ranging from 0% to 70% opacity
aFont := TFont.Create;
aFont.Name := 'Tahoma';
aFont.Size := 54;
aFont.Style := [fsBold];
ImageEnView1.Proc.TextOutEx( 100, 100, 0, 0,
'ImageEn!', aFont,
0, iejLeft, ielTop,
0, clBlack,
0, // 100% transparent
IEOpacityToAlphaD( 0.7 ), // 70% opacity
clYellow, gpgHorizontal );
aFont.Free;
