Declaration
TIEColorTable = (// DICOM Color Palettes
iectRainbow, // Rainbow: Standard color set from indigo to red
iectHotIron, // Hot Iron: Used in nuclear medicine applications to make differences in signal intensity (counts) more apparent to the human observer
iectPET, // PET: Used in PET applications to pseudo-color the superimposed PET images when displayed fused with underlying CT images
iectPET20Step, // PET 20 Step: Used in PET applications to make differences in signal intensity (counts) more apparent to the human observer
iectHotMetalBlue, // Hot Metal Blue: Used in nuclear medicine or PET applications to make differences in signal intensity (counts) more apparent to the human observer
// Other Color Palettes
iectInverted, // Simple inversion of colors (Negative)
iectMagma,
iectInferno,
iectPlasma,
iectViridis,
iectCividis,
iectTwilight,
iectTwilightShifted,
iectTurbo,
iectBerlin,
iectManagua,
iectVanimo );
Samples
colorMap := GenerateDicomColorPalette( iectRainbow, 256 );IEDrawColorPalette( bmp, colorMap, 17, 17, 32 );

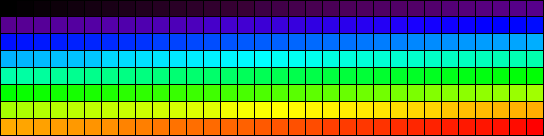

Rainbow (iectRainbow)

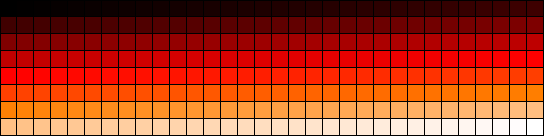

Hot Iron (iectHotIron)

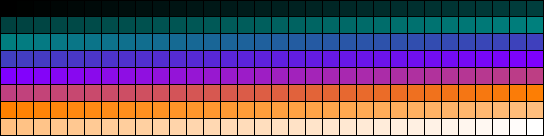

PET (iectPET)

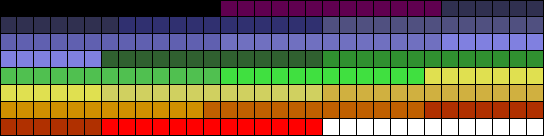

PET 20 Step (iectPET20Step)

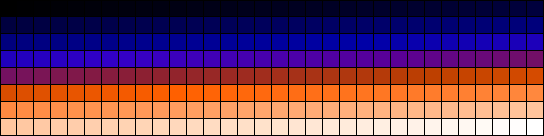

Hot Metal Blue (iectHotMetalBlue)

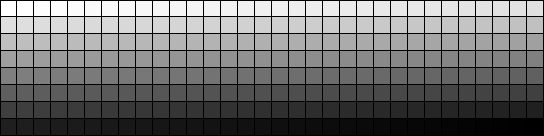

Inverted (iectInverted)

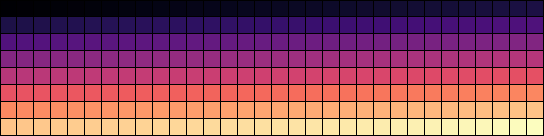

Magma (iectMagma)

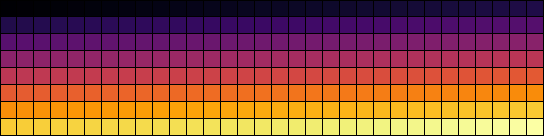

Inferno (iectInferno)

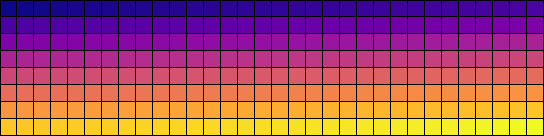

Plasma (iectPlasma)

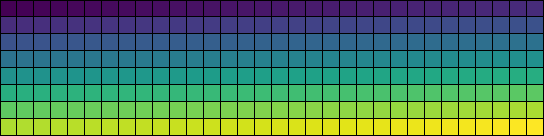

Viridis (iectViridis)

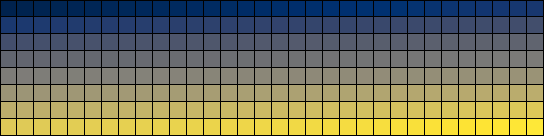

Cividis (iectCividis)

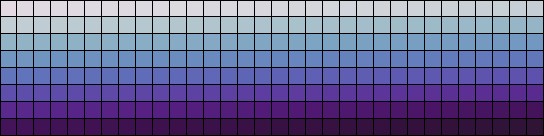

Twilight (iectTwilight)

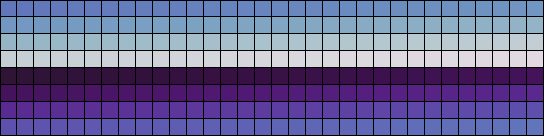

Twilight - Shifted (iectTwilightShifted)

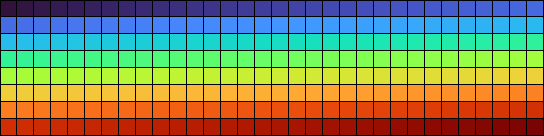

Turbo (iectTurbo)
Berlin (iectBerlin)

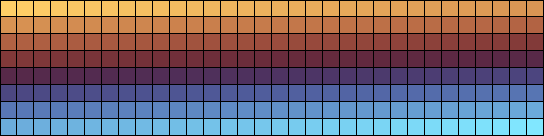

Managua (iectManagua)

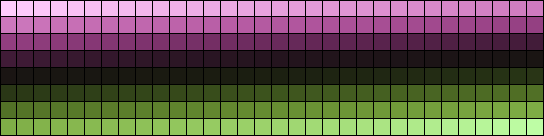

Vanimo (iectVanimo)
See Also
◼GenerateDicomColorPalette◼IEDrawColorPalette
◼dicom.nema.org/medical/dicom/current/output/chtml/part06/chapter_B.html
