GenerateDicomColorPalette

Declaration

function GenerateDicomColorPalette(ColorTable: TIEColorTable; ColorCount: Integer = 256): TIEArrayOfTRGB;

Description

Returns an array of RGB colors for a specified color palette.
These palettes are commonly used to colorize gray-scale DICOM images.
ColorCount must be in the range of 2 - 256.

To display images with a color map (without modifying the image) use AssignColorMap.
To change the colors of an image use MapGrayToColor

Note:
◼Add ieDicomTags to your uses clause to support GenerateDicomColorPalette
◼ieDicomTags adds about 400KB to your exe
◼You can output the palette as an image using IEDrawColorPalette, or show the palette to the user using IEPromptForColor

Demos

	Demos\InputOutput\DicomRange\Dicom.dpr
	Demos\Other\ColorPalette\ColorPalette.dpr

Examples

Also see: Automated Samples

// Show preview of Rainbow color palette
var
  colorMap: TIEArrayOfTRGB;
  aColor: TColor;
begin
  colorMap := GenerateDicomColorPalette( iectRainbow );
  IEPromptForColor( aColor, colorMap, Length( colorMap ));
end;

// Show image with Rainbow palette (image is not changed)
colorMap := GenerateDicomColorPalette( iectRainbow );
ImageEnView1.IEBitmap.AssignColorMap( colorMap );
ImageEnView1.Update();

// Apply Hot Iron palette to image (change image)
colorMap := GenerateDicomColorPalette( iectHotIron );
ImageEnView1.Proc.MapGrayToColor( colorMap );

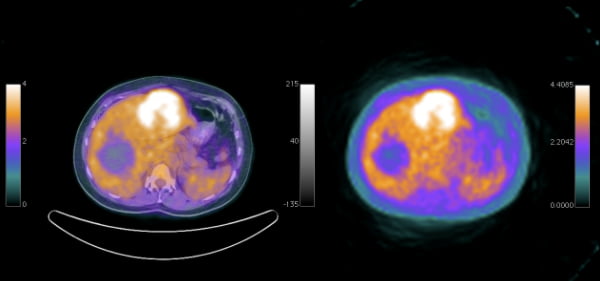

// Apply PET palette to image
colorMap := GenerateDicomColorPalette( iectPET );
ImageEnView1.Proc.MapGrayToColor( colorMap );

// Apply PET 20 Step palette to image
colorMap := GenerateDicomColorPalette( iectPET20Step );
ImageEnView1.Proc.MapGrayToColor( colorMap );

// Apply Hot Metal Blue palette to image
colorMap := GenerateDicomColorPalette( iectHotMetalBlue );
ImageEnView1.Proc.MapGrayToColor( colorMap );

// Display Hot Iron palette in TIEColorPalette
var
  colorMap: TIEArrayOfTRGB;
begin
  colorMap := GenerateDicomColorPalette( iectHotIron );
  ColorPalette1.AssignPalette( colorMap );
end;

// Show colors as inverted (Negative)
var
  colorMap: TIEArrayOfTRGB;
begin
  colorMap := GenerateDicomColorPalette( iectInverted );
  ColorPalette1.AssignPalette( colorMap );
end;

// Output a color palette
colorMap := GenerateDicomColorPalette( iectBerlin, 256 );
IEDrawColorPalette( bmp, colorMap, 17, 17, 32 );
