I just bought ImageEn today, and I'm looking at the VMR_Capture demo as a blueprint for what I'm trying to do.
For some reason, though, it's not recording audio. RenderAudio is set to true (which is just part of the demo and I haven't changed anything in the demo), but there's no audio being recorded to the AVI.
I tested with the Windows Sound Recorder and my microphone is working fine.
No dice. I had already tried that. Tried again, setting it to the only audio input format available, and the result was the same: No audio.
// set video source as index of IO.DShowParams.VideoInputs
w := VideoFormats[ ListBox1.ItemIndex ].MaxWidth;
h := VideoFormats[ ListBox1.ItemIndex ].MaxHeight;
SetVideoInput(ComboBox1.ItemIndex, StrToIntDef(edit4.Text,0), w, h); // set the second parameter if you have more than one camera with same name
SetAudioInput(0);
// enable video and audio rendering
RenderVideo:=true;
RenderAudio:=true;

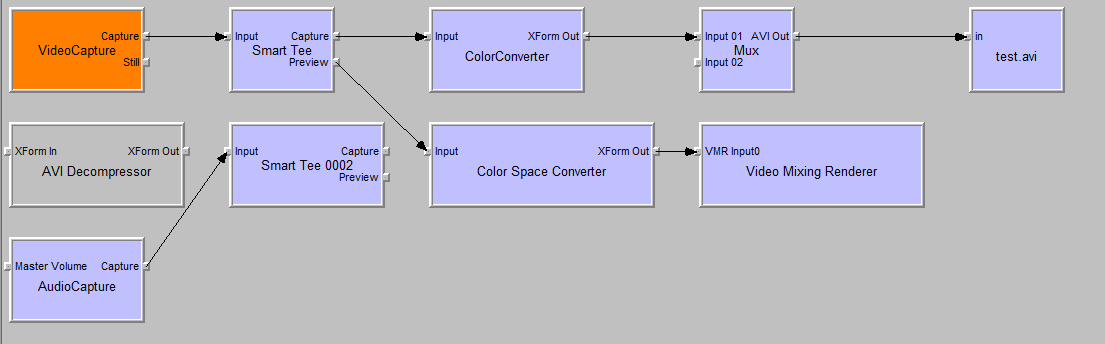

Here is what GraphEdit shows. As you can see, the audio connects to the Smart Tee filter...and that's it. You can see where the Smart Tee filter *SHOULD* connect to one of the MUX filter inputs, but doesn't.
Search
VMR_Capture Demo, no Audio
Posted - Oct 16 2013 : 14:14:12
