complex shape - highlight

New Topic

Reply to Topic

Author

Topic

graphman

259 Posts

Posted - Nov 25 2014 : 03:49:49

Hi, I'm trying to create highlighted shapes over a street map. The Highlight tool does this for me but its a square/rectangle shape only. The polyline is perfect for creating the exact shapes I need (to follow boundaries etc.) but I can't fill these shapes. Is there a way to create a complex shape with the properties of highlight shape?

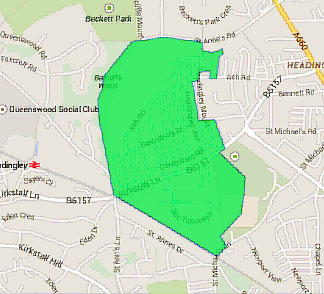

This what I'm hoping to do!

xequte

39140 Posts

Posted - Nov 26 2014 : 22:22:27

Hi

How about something like:


procedure Tfmain.btnInsertComplexShapeClick(Sender: TObject);
begin
  ImageEnVect1.MouseInteractVt := [miPutPolyLine];
  ImageEnVect1.PolylineClosingMode := iecmAlways;
  ImageEnVect1.PolylineEndingMode  := ieemMouseUp;
  ImageEnVect1.ObjBrushColor[-1] := clYellow;
  ImageEnVect1.ObjBrushStyle[-1] := bsSolid;
end;

Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
