 Posted - Dec 14 2014 : 12:14:20
|
Hi,
I am trying to use textout but getting white around text. I m using follwing code:
ImageEnViewTxt.Bitmap.Canvas.TextOut(Xalign,Yalign, 'New Text Layer')

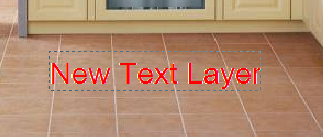

Output is:
However it should be like this:
I also tried all ResampleFilters on this new layer one by one but without luck. Any help? Thanks in advance. |
|
|
xequte
39140 Posts |
|
|
exchangeviews
India
39 Posts |
Posted - Dec 14 2014 : 13:43:20
|
Hi Nigel,
thanks for update. I used the Proc.TextOut and it is working fine if I draw a multiline memo text left align. Issue raised if center align or right align is used. See the following code:
for i := 0 to Memo1.Lines.Count - 1 do
Begin
if btnLeftAlign.Down then
Xalign:=0
else if btnCenterAlign.Down then
Xalign:=Round((iTextWidth - ImageEnViewTxt.Iebitmap.Canvas.TextWidth(Memo1.Lines[i]))/2)
else if btnRightAlign.Down then
Xalign:=ImageEnViewTxt.CurrentLayer.Width - ImageEnViewTxt.Iebitmap.Canvas.TextWidth(Memo1.Lines[i]);
// ImageEnViewTxt.Bitmap.Canvas.TextOut(Xalign,i * iTextHeight, Memo1.Lines[i]); // draw text on second layer
ImageEnViewTxt.Proc.TextOut(Xalign,i * iTextHeight,Memo1.Lines[i],FontName, FontSize,
FontColor, Style,StrToInt(editRotation.Text), False);
End;
See result:
Same code works fine on center align and right align if I draw using canvas.textout but white around the text. Please help. Where is the problem?
|
 |
|
|
xequte
39140 Posts |
Posted - Dec 14 2014 : 22:02:15
|
Hi
There looks to be an issue in your code.
Here:
Xalign := Round((iTextWidth - ImageEnViewTxt.Iebitmap.Canvas.TextWidth(Memo1.Lines[i]))/2)
You call TextWidth. TextWidth returns the width for text using the current font of the canvas. You do not appear to be setting the canvas font to that which is passed to TextOut.
Try setting the ImageEnViewTxt.IEBitmap.Canvas.Font to match the specified properties, then call:
ImageEnViewTxt.Proc.TextOut(Xalign, i * iTextHeight, Memo1.Lines[i], nil, StrToInt(editRotation.Text), False);
Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
|
|
|
|
xequte
39140 Posts |
Posted - Dec 14 2014 : 22:09:32
|
Also, why not just set XAlign to Align_Text_Right or Align_Text_Horz_Center?
Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
|
|
|
|
exchangeviews
India
39 Posts |
Posted - Dec 15 2014 : 00:00:01
|
Hi Nigel,
Thanks. Align_Text_Right or Align_Text_Horz_Center worked great. Is there any workaround to avoid chop off the tail when font style is italic and Align_Text_Right is used? See image:
See the char 'r' and 'd' is chopped off.
Thanks in advance. |
|
|
|
spetric
Croatia
308 Posts |
Posted - Dec 15 2014 : 14:52:53
|
The simplest workaround for this situations is to add a blank on the end of each line.
I use this trick often, especially when moving single line of text around the canvas and if I want mouse cursor to be in the center of text line. If text is in italic, I add one blank at then beginning of the line and one at the end...so the mouse cursor is always in the middle and output text is not cropped. |
|
|
|
exchangeviews
India
39 Posts |
Posted - Dec 28 2014 : 04:06:05
|
Hi Nigel,
Here is the code I am using:
ImageEnViewTxt.LayersAdd; // add a new layer
ImageEnViewTxt.CurrentLayer.PosX:=StrToInt(editXoffset.Text);
ImageEnViewTxt.CurrentLayer.PosY:=StrToInt(editYoffset.Text);
ImageEnViewTxt.Bitmap.Canvas.Font.Name:=FontName;
ImageEnViewTxt.Bitmap.Canvas.Font.Style:=Style;
ImageEnViewTxt.Bitmap.Canvas.Font.Size:=FontSize;
ImageEnViewTxt.Bitmap.Canvas.pen.Color:=clRed;
ImageEnViewTxt.Bitmap.Canvas.Pen.Width:=2;
ImageEnViewTxt.Bitmap.Canvas.Font.Color:=FontColor;
ImageEnViewTxt.EnableInteractionHints:=False;
iTextHeight:= ImageEnViewTxt.ieBitmap.Canvas.TextHeight(Memo1.Lines[0]);
ImageEnViewTxt.Proc.Fill(CreateRGB(255, 255, 255));
iTextWidth:=0;
for i := 0 to Memo1.Lines.Count - 1 do
Begin
if iTextWidth < ImageEnViewTxt.Iebitmap.Canvas.TextWidth(Memo1.Lines[i]) then
iTextWidth:=ImageEnViewTxt.Iebitmap.Canvas.TextWidth(Memo1.Lines[i]);
ImageEnViewTxt.Iebitmap.Width:=iTextWidth;
End;
ImageEnViewTxt.Iebitmap.height:=iTextHeight*Memo1.Lines.Count;
for i := 0 to Memo1.Lines.Count - 1 do
Begin
if iTextWidth>0 then
Begin
if btnLeftAlign.Down then
Begin
Xalign:= 0;
End
else if btnCenterAlign.Down then
Begin
Xalign:=Align_Text_Horz_Center
End
else if btnRightAlign.Down then
Begin
Xalign:=Align_Text_Right;
End;
if i=0 then
Yalign:= i * iTextHeight
else
Yalign:= i * (iTextHeight + UpDownLineSpace.Position);
ImageEnViewTxt.CurrentLayer.Rotate:=StrToInt(EditRotation.Text);
ImageEnViewTxt.Proc.TextOut(Xalign, Yalign, Memo1.Lines[i], FontName, FontSize, FontColor, Style, 0, False);
End;
End;
ImageEnViewTxt.CurrentLayer.ResampleFilter:=ResampleFilter[ComboBoxResampleFilter.ItemIndex];
ImageEnViewTxt.CurrentLayer.UseResampleFilter:=True;
ImageEnViewTxt.Proc.SetTransparentColors(CreateRGB(255,255,255),CreateRGB(255,255,255),0); // remove the white
Please assist how to calculate the layer width in advance if Proc.TextOut is going to draw an italic text? |
|
|
|
