procedure TForm1.StringGrid1DrawCell(Sender: TObject; ACol, ARow: Longint;
  Rect: TRect; State: TGridDrawState);
var
  s: string;
  aCanvas: TCanvas;
begin
  if (ACol <> 1) or (ARow = 0) then
    Exit;
  s := (Sender as TStringGrid).Cells[ACol, ARow];

  // Draw ImageX.Picture.Bitmap in all Rows in Col 1
  aCanvas := (Sender as TStringGrid).Canvas;  // To avoid with statement
  // Clear current cell rect
  aCanvas.FillRect(Rect);
  // Draw the image in the cell
  if (s = 'online') then
    aCanvas.Draw(Rect.Left, Rect.Top, Image1.Picture.Bitmap)
  else
    aCanvas.Draw(Rect.Left, Rect.Top, Image2.Picture.Bitmap);
end;

// Get our image
aIEBitmap := ImageEnMView1.GetIEBitmap( idx );

// Adjust our rect to maintain aspect ratio
Rect := GetImageRectWithinArea( Rect, aIEBitmap.Width, aIEBitmap.Height );

// Draw the image
aIEBitmap := RenderToCanvas( (Sender as TStringGrid).Canvas, Rect.Left, Rect.Top, Rect.Right - Rect.Left, Rect.Bottom - Rect.Top, rfFastLinear, 0 );

// Release our image
ImageEnMView1.ReleaseBitmap( idx, False );

// Col 1 of our string grid displays a thumbnail drawn from a TImageEnMView
procedure TForm1.StringGrid1DrawCell(Sender: TObject; ACol, ARow: Longint;
  Rect: TRect; State: TGridDrawState);
var
  aIEBitmap: IEBitmap;
  aCanvas: TCanvas;
  idx: Integer;
begin
  // Col 1 contains thumbnail. Row 0 is fixed header row
  if (ACol <> 1) or (ARow = 0) then
    Exit;

  idx := ARow;
  aCanvas := (Sender as TStringGrid).Canvas;

  // Clear current cell rect
  aCanvas.FillRect( Rect );

  // Get our image
  // Note: don't need to create or free the TIEBitmap
  aIEBitmap := ImageEnMView1.GetIEBitmap( idx );

  // Adjust our rect to maintain the image aspect ratio
  Rect := GetImageRectWithinArea( Rect, aIEBitmap.Width, aIEBitmap.Height );

  // Draw the image
  aIEBitmap := RenderToCanvas( aCanvas, Rect.Left, Rect.Top, Rect.Right - Rect.Left,   Rect.Bottom - Rect.Top, rfFastLinear, 0 );

  // Release our image
  ImageEnMView1.ReleaseBitmap( idx, False );
end;

procedure SetColumnFullWidth(Grid: TStringGrid; ACol: Integer);
var
  I: Integer;
  FixedWidth: Integer;
begin
  with Grid do
    if ACol >= FixedCols then
    begin
      FixedWidth := 0;
      for I := 0 to FixedCols - 1 do
        Inc(FixedWidth, ColWidths[I] + GridLineWidth);
      ColWidths[ACol] := ClientWidth - FixedWidth - GridLineWidth;
    end;
end;

procedure TForm1.FillTheGrid1Click(Sender: TObject);
var
  I: Integer;
begin
  for I := 0 to StringGrid1.RowCount - 1 do
    StringGrid1.Rows[I].Clear;
  StringGrid1.RowCount := ImageEnMView1.ImageCount;
  StringGrid1.Cells[0, 0] := 'Frame';
  StringGrid1.Cells[1, 0] := 'Filename';
  StringGrid1.Cells[2, 0] := 'Thumbnail';
  StringGrid1.Cells[3, 0] := 'Width';
  StringGrid1.Cells[4, 0] := 'Height';
  StringGrid1.Cells[5, 0] := 'Colors';
  StringGrid1.Cells[6, 0] := 'Background';
  for I := 1 to StringGrid1.RowCount - 1 do
  begin
    StringGrid1.Cells[0, I] := IntToStr(I);
    StringGrid1.Cells[1, I] := ImageEnMView1.MIO.Params[I].FileName;
    StringGrid1.Cells[3, I] := IntToStr(ImageEnMView1.MIO.Params[I].Width);
    StringGrid1.Cells[4, I] := IntToStr(ImageEnMView1.MIO.Params[I].Height);
    StringGrid1.Cells[5, I] :=
      IntToStr(ImageEnMView1.MIO.Params[I].BitsPerSample *
      ImageEnMView1.MIO.Params[I].SamplesPerPixel) + '-bit';
    StringGrid1.Cells[6, I] :=
      ColorToString(TRGB2TColor(ImageEnMView1.MIO.Params[I].ICO_Background));
  end;
  SetColumnFullWidth(StringGrid1, 1);
  StringGrid1.Invalidate;
end;

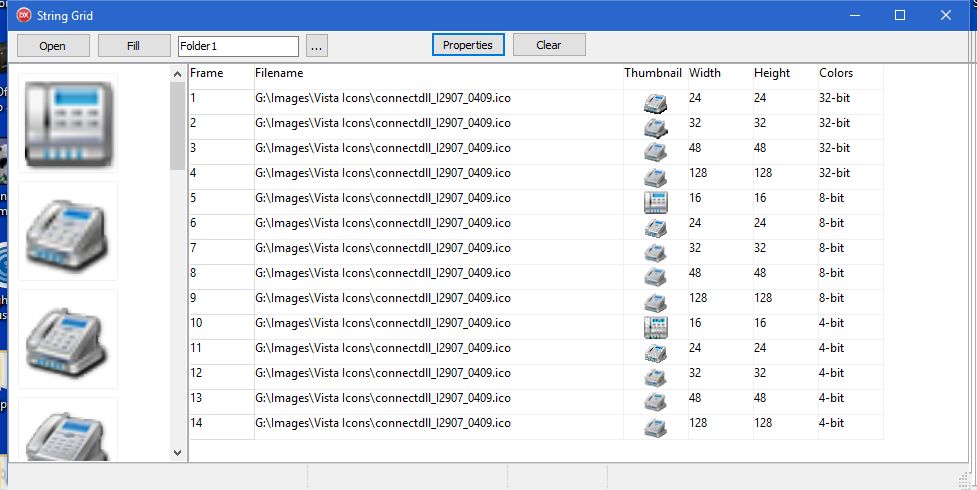

procedure TForm1.StringGrid1DrawCell(Sender: TObject; ACol, ARow: Integer;
  Rect: TRect; State: TGridDrawState);
var
  iIEBitmap: TIEBitmap;
  iCanvas: TCanvas;
  idx: Integer;
  iStrCell: string;
  iRect: TRect;
  s: String;
  iDrawRect: TRect;
  iImageEnProc: TImageEnProc;
  iRGB: TRGB;
begin
  if ImageEnMView1.ImageCount > 0 then
  begin
    StringGrid1.Canvas.FillRect(Rect);
    s := StringGrid1.Cells[ACol, ARow]; // the text in the cell
    if Length(s) > 0 then // is there any text needing to be formatted?
    begin
      iDrawRect := Rect;
     (* if (gdSelected in State) then
      begin
        StringGrid1.Canvas.Brush.Color := clHighlight;
        StringGrid1.Canvas.Font.Color := clHighlightText;
      end
      else
      begin
        StringGrid1.Canvas.Brush.Color := clWindow;
        StringGrid1.Canvas.Font.Color := clWindowText;
      end; *)
      StringGrid1.Canvas.Font.Name := 'Segoe UI';
      StringGrid1.Canvas.Font.Size := 9;
      DrawText(StringGrid1.Canvas.handle,
        Pchar(s), Length(s), iDrawRect, DT_CALCRECT OR DT_WORDBREAK OR DT_LEFT);
      // format the text as required, then use drawRect later as per DT_CALCRECT
      if (iDrawRect.bottom - iDrawRect.top) > StringGrid1.RowHeights[ARow] then
        // Does the row need to be adjusted?
        StringGrid1.RowHeights[ARow] := (iDrawRect.bottom - iDrawRect.top)
        // adjust row height
      else
      begin // fits in one line
        iDrawRect.Right := Rect.Right;
        StringGrid1.Canvas.FillRect(iDrawRect);
        DrawText(StringGrid1.Canvas.handle, Pchar(s), Length(s), iDrawRect,
          DT_LEFT);
      end;
    end;
    // Col 1 contains thumbnail. Row 0 is fixed header row
    if (ACol <> 2) or (ARow = 0) then
      Exit;
    idx := ARow;
    iCanvas := (Sender as TStringGrid).Canvas;
    // Get our image
    // Note: don't need to create or free the TIEBitmap
    iIEBitmap := ImageEnMView1.GetTIEBitmap(idx);
    // Adjust our rect to maintain the image aspect ratio
    Rect := GetImageRectWithinArea(iIEBitmap.Width, iIEBitmap.Height, Rect);
    // aIEBitmap.IEConvertToThumbnail(24, 24, True, rfNone, False, clBlack, False,
    // 1, 1, clWhite, clWhite);
    if ImageEnMView1.MIO.Params[idx].BitsPerSample * ImageEnMView1.MIO.Params
      [idx].SamplesPerPixel = 32 then
    begin
      iImageEnProc := TImageEnProc.Create(nil);
      iImageEnProc.AttachedIEBitmap := iIEBitmap;
      iImageEnProc.CastColor(0, iIEBitmap.Height - 1, TColor2TRGB(clWhite), 5);
      iImageEnProc.CastColor(iIEBitmap.Width - 1, iIEBitmap.Height - 1,
        TColor2TRGB(clWhite), 5);
      { iRGB := iIEBitmap.Pixels[0, iIEBitmap.Height - 1];
        iImageEnProc.SetTransparentColors(iRGB, iRGB, 0); }
      iImageEnProc.Free;
    end;
    // Draw the image
    iIEBitmap.RenderToCanvas(iCanvas, Rect.Left, Rect.top,
      Rect.Right - Rect.Left, Rect.bottom - Rect.top, rfFastLinear, 0);
    { aIEBitmap.RenderToCanvasWithAlpha(aCanvas, Rect.Left, Rect.Top,
      Rect.Right - Rect.Left, Rect.Bottom - Rect.Top, 0, 0, 0, 0, 255, rfNone, ielNormal, 255); }
    // Release our image
    ImageEnMView1.ReleaseBitmap(idx, False);
  end;
end;

procedure TForm1.Fill1Click(Sender: TObject);
{ Fill ImageEnMView. }
begin
  ImageEnMView1.Clear;
  {FillFromDirectory with load on demand set to false}
  ImageEnMView1.FillFromDirectory(Folder1.Text, -1, False, '', False);
  ImageEnMView1.SelectedImage := 0;
end;

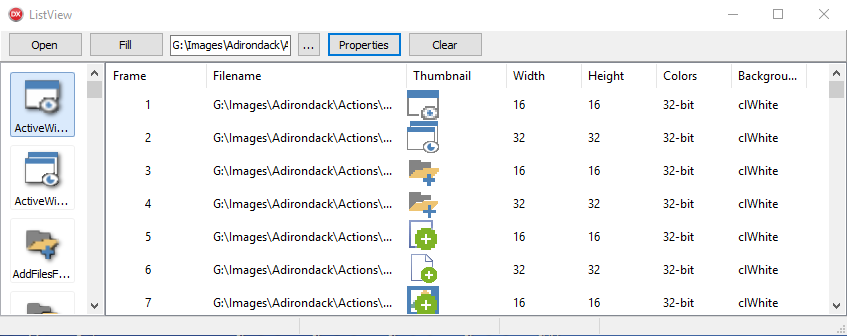

procedure TForm1.FillTheListview1Click(Sender: TObject);
{ Fill the listview with image properties and a thumbnail.}
var
  i: Integer;
  iItem: TListItem;
  iIEBitmap: TIEBitmap;
  iImageEnProc: TImageEnProc;
  iRGB: TRGB;
  iCounter: integer;
begin
  ListView1.Clear;
  { ImageList1 is set to hold 32x32 images with a colordepth of cd32Bit. Mask is true. }
  { Set the ListView small images to Imagelist1 }
  ImageList1.Clear;
  for i := 0 to ImageEnMView1.ImageCount - 1 do
  begin
    {Get the bitmap from ImageEnMView}
    iIEBitmap := ImageEnMView1.GetTIEBitmap(i);
    {Convert the bitmap to a 32x32 thumbnail}
    iIEBitmap.IEConvertToThumbnail(32, 32, True, rfNone, False, clBlack, False,
      1, 1, clBlack, clWhite);
    { Set the transparent color }
    iImageEnProc := TImageEnProc.Create(nil);
    iImageEnProc.AttachedIEBitmap := iIEBitmap;
    iRGB := iIEBitmap.Pixels[0, iIEBitmap.Height - 1];
    iImageEnProc.SetTransparentColors(iRGB, iRGB, 0);
    { Add the image to the image list }
    ImageList1.Masked := True;
    ImageList1.AddMasked(iIEBitmap.VclBitmap, clBlack);
    { Release the iIEBitmap }
    ImageEnMView1.ReleaseBitmap(i, False);
    { Free iImageEnProc }
    iImageEnProc.Free;
  end;
  iCounter := 0;
  { Fill the Listview }
  for i := 0 to ImageEnMView1.ImageCount - 1 do
  begin
    iItem := ListView1.Items.Add;
    Inc(iCounter);
    { Set the imageindex to -1 so icons do not appear with the caption }
    iItem.ImageIndex := -1;
    { Set the caption }
    iItem.Caption := IntToStr(iCounter);
    { Add the filename as a subitem }
    iItem.SubItems.Add(ImageEnMView1.MIO.Params[i].FileName);
    { Add a subitem for the thumbnail }
    iItem.SubItems.Add('');
    { Set the thumbnail subitem subitemimageindex }
    iItem.SubItemImages[1] := i;
    iItem.SubItems.Add(IntToStr(ImageEnMView1.MIO.Params[i].Width));
    iItem.SubItems.Add(IntToStr(ImageEnMView1.MIO.Params[i].Height));
    iItem.SubItems.Add(IntToStr(ImageEnMView1.MIO.Params[i].BitsPerSample *
      ImageEnMView1.MIO.Params[i].SamplesPerPixel) + '-bit');
    iItem.SubItems.Add(ColorToString(TRGB2TColor(ImageEnMView1.MIO.Params[i]
      .ICO_Background)));
  end;
end;

// Draw aIEBitmap within aRect while maintaining the aspect ratio of the image:
aRect := GetImageRectWithinArea( aIEBitmap.Width, aIEBitmap.Height, aRect );
aIEBitmap.RenderToCanvasWithAlpha( aCanvas, aRect.Left, aRect.Top, aRect.Right - aRect.Left, aRect.Bottom - aRect.Top, 0, 0, aIEBitmap.Width, aIEBitmap.Height, 255, rfFastLinear );
