 TImageEnView text on picture is blurry and unclear		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

MicoVukovic

Australia
1 Posts
Posted - Apr 06 2016 :  18:30:41  Show Profile  Reply


attach/MicoVukovic/201646182814_ImageEnView.zip
55.26 KB


In our app we have to show some pictures with text as part of it.
If we use TImage text on picture is clean and clear.
If we use TImageEnView text on picture is blurry and unclear.
Attached app and a couple of pictures (.wmf) will demonstrate a problem.
Please advice what to do to get it right?

xequte

39053 Posts
Posted - Apr 06 2016 :  21:45:04  Show Profile  Reply
Hi Mico

Firstly, you should set the ZoomFilter. rfNone should almost never be used.

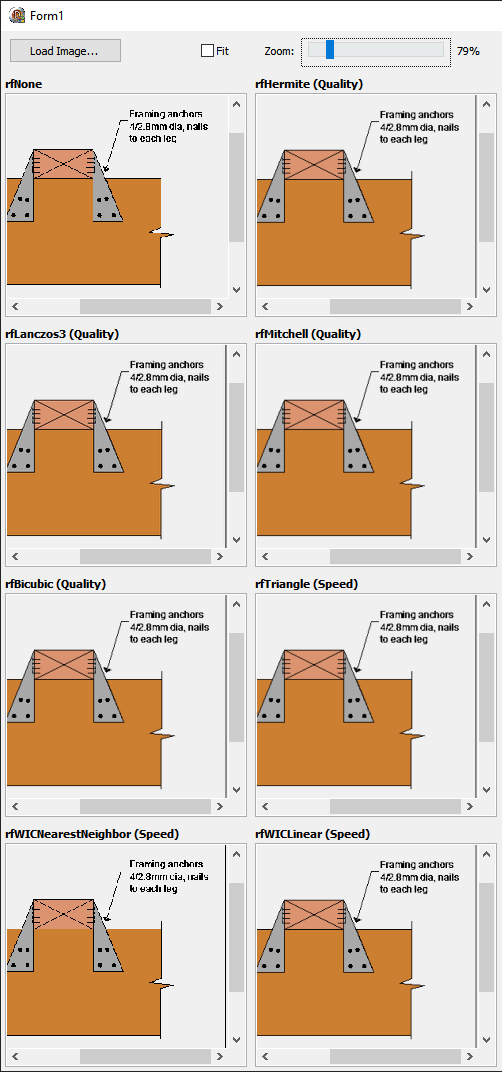

Here is the output from our new Zoom Filter demo:

attach/xequte/201646214246_ZoomFilter.zip
1169.29 KB





If that is not the issue, then try calling ImageEnIO.ImportMetaFile() directly, passing the display size:

http://www.imageen.com/help/TImageEnIO.ImportMetafile.html

Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
