StretchDraw issue

New Topic

Reply to Topic

Author

Topic

kalyani

India
5 Posts

Posted - Apr 18 2016 : 02:01:11

We are facing issue with StretchDraw function.
We are trying to print one image on canvas.
we are applying scale to that image according to space which we have.
But after drawing this image with StretchDraw function, image is getting stretched more in width according to available space.
So the image we are getting are not in the proper dimensions.
StretchDraw is not working properly at all.
What to do o get image in proportion.

kk

xequte

39053 Posts

Posted - Apr 18 2016 : 03:29:45

Hi

Please show us your code, and attach a few images that show what is occurring.

Nigel
Xequte Software
www.xequte.com
nigel@xequte.com

kalyani

India
5 Posts

Posted - Apr 18 2016 : 03:36:42

function TBaseReport.fuPrintImage(FilePath: string;
PrintImageRequest: TPrintImageRequest): Integer; //PrintImageRequest has image parameters in mm
var
imageParameter: TImageParameter;
lRatio: Real;
lScale: Real;
lImgRatio: Real;
imageWidth,imageHeight :Double; //actual image height, width
lLeft, lTop, lRight, lBottom, lspaceBetImagePrintArea: double;
begin
Result := -1;

if (not Assigned(PrintImageRequest)) or (not Assigned(PrintImageRequest.imageParameter)) then
exit;

imageParameter := PrintImageRequest.imageParameter;

lLeft := imageParameter.Left;
lTop := imageParameter.Top;
lRight := imageParameter.Right; //width
lBottom := imageParameter.Bottom; //height

lspaceBetImagePrintArea := PrintImageRequest.SpaceBetImageAndRect;

imageWidth := MmToPxX(lRight - lspaceBetImagePrintArea);
imageHeight := MmToPxY(lBottom - lspaceBetImagePrintArea);

lScale := 1;

Result := MmToPxY(lBottom); //result in pixel

with uCurCanvas do
begin
try
try
if (FileExists(FilePath)) then
begin

LoadImageFromFile(FilePath);

if (PrintImageRequest.PrintWithRatio) and (ImageEn.IsEmpty = false) then
begin
lRatio := MmToPxY(imageParameter.Bottom) / MmToPxX(imageParameter.Right);

imageHeight := ImageEn.Bitmap.Height; // actual image ht, wd
imageWidth := ImageEn.Bitmap.Width;
lImgRatio := imageHeight / imageWidth;

if lImgRatio >= lRatio then
lScale := MmToPxY(imageParameter.Bottom) / imageHeight
else
lScale := MmToPxX(imageParameter.Right) / imageWidth;
end;
end;

if PrintImageRequest.DrawRectangeAroundImage then
begin
Rectangle(MmToPxX(lLeft), MmToPxY(lTop), MmToPxX(lRight), MmToPxY(lBottom));
end;

if (ImageEn.IsEmpty = false) then
begin
StretchDraw
(Rect(
MmToPxX(lLeft + 1),
MmToPxY(lTop + 1),
Trunc(imageWidth * lScale),
Trunc(imageHeight * lScale)), ImageEn.Bitmap);
end;

Result := MmToPxY(imageParameter.Bottom - 1); //result in pixels

except
on Ex: Exception do
fuShowMsg('TBaseReport.fuPrintImage' + cNEW_LINE + Ex.message, 1);
end;
finally
ImageEn.Blank;
end; //finally
end; //with uCurCanvas do
end;

kk

kalyani

India
5 Posts

Posted - Apr 18 2016 : 03:44:55

kalyani

India
5 Posts

Posted - Apr 18 2016 : 03:47:40

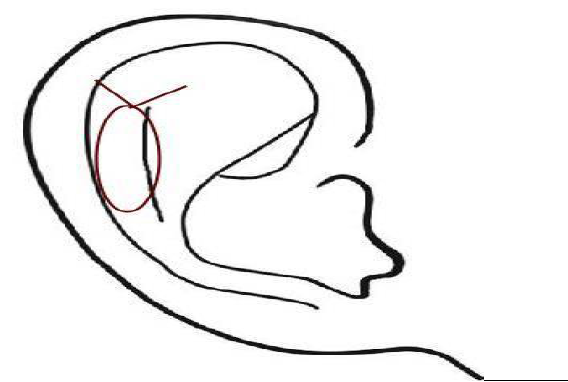

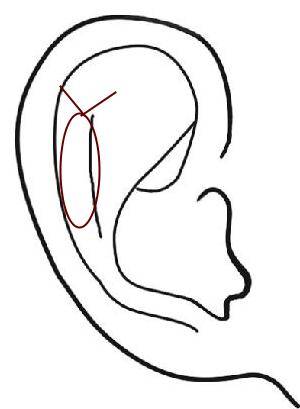

above was the original image and here is the image after StretchDraw

xequte

39053 Posts

Posted - Apr 18 2016 : 17:13:56

Hi

This is more of a TCanvas than an ImageEn question.

It looks like you are treating the Rect.Right and Bottom values as width and height, i.e. it should be:


StretchDraw( Rect( MmToPxX(lLeft + 1),
                   MmToPxY(lTop + 1),
                   MmToPxX(lLeft + 1) + Trunc(imageWidth * lScale),
                   MmToPxY(lTop + 1) + Trunc(imageHeight * lScale)),
             ImageEn.Bitmap );

Nigel
