 Text objects in TImageEnVect char spacing		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

wvisser

Netherlands
8 Posts
Posted - Dec 27 2011 :  11:37:04  Show Profile  Reply
Hi,

I am using text objects in TImageEnVect.
I think I found a bug:

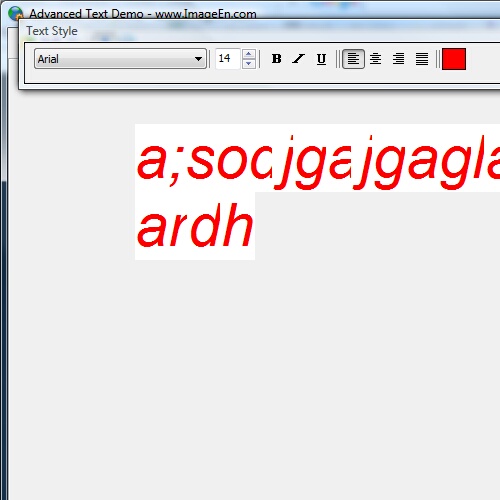

When applying italic style, the character interspacing is incorrect and due to the characters becoming wider, they overlap and the right part is sliced off the character every time. THis happend also in the online demo. See attached foto.


48.07 KB
Can this be fixed? or how to avoid it?

regards, WIlfried

wpjvisser

fab

1310 Posts
Posted - Dec 29 2011 :  02:18:51  Show Profile  Reply
There is a bug in the demo. In "Tfmain.btnAddTextClick" method insert this code:
ImageEnVect1.ObjMemoCharsBrushStyle[-1] := bsClear;


It must be inserted in:

.....
  if btnAddText.Down then
  begin
    ImageEnVect1.MouseInteractVt:=[miPutMemo];
    ImageEnVect1.ObjFontLocked[-1]:=false;
    ImageEnVect1.ObjMemoBorderStyle[-1]:=psClear;
    ImageEnVect1.ObjMemoCharsBrushStyle[-1] := bsClear;    // <<<< INSERT THIS
    tmpFont:=TFont.Create;
    tmpFont.Color:=clRed;
    tmpFont.Size:=14;
    tmpFont.Name:='Arial';
.....
