 VCL Styles		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

AlphaUniform

30 Posts
Posted - Oct 20 2017 :  03:44:10  Show Profile  Reply
Hi all,
is there a way to enable VCL Styles (*.vsf) for ImageEn components?
What I need is a styled Scrollbar.

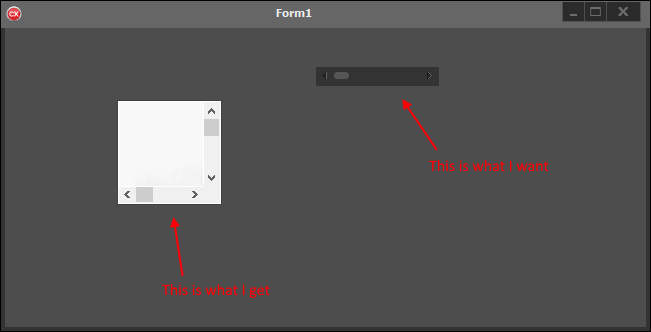

See attached image.
Can anybody tell me how to do that?

Thanks in advance,
Alex

xequte

39053 Posts
Posted - Oct 20 2017 :  16:57:09  Show Profile  Reply
Hi Alex

What version of ImageEn are you using?

Have you tried the demo:

Demos\Other\ImageEn_Theming\VclStylesDemo.dpr

Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
Go to Top of Page

AlphaUniform

30 Posts
Posted - Oct 21 2017 :  06:22:43  Show Profile  Reply
Hi Nigel,
I have Version 6.3.0.
The Demo VclStyles is not include in my download package.
Is it possible with this version?

Best regards
Alex
Go to Top of Page

w2m

USA
1990 Posts
Posted - Oct 21 2017 :  10:14:40  Show Profile  Reply
I can not pinpoint the version where theming was added to ImageEn based in the history page https://www.imageen.com/info/history.html, but here is the demo:

attach/w2m/20171021101017_ImageEn_Theming.zip
524.73 KB.

If the demo does not compile with version 6.3.0 then you should obtain the latest version.

All of the ImageEn components were not completely themed until version ImageEn 7.0.1 (24 Aug. 2017) Version 7.0.1 Fixed: Scrollbars not themed for TIEColorPalette

Bill Miller
Adirondack Software & Graphics
Email: w2m@hughes.net
EBook: http://www.imageen.com/ebook/
Custom Commercial ImageEn Development
Go to Top of Page

xequte

39053 Posts
Posted - Oct 21 2017 :  16:06:39  Show Profile  Reply
Hi

In 6.3.0. you can partially theme by enabling the define in ie.inc and recompiling your packages.



Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
Go to Top of Page

AlphaUniform

30 Posts
Posted - Oct 25 2017 :  02:03:34  Show Profile  Reply
Thank you all for the replies.

@Bill: My IEGlobalSettings() does not have the property EnableTheming. So the demo wont compile, thank you.

@Nigel: do you mean "{.$define THEMED_BORDERS}", will this theme scrollbars, also? I just need the scrollbars. Background is ok with TColor, Border is ok.

Thank you very much.
Alex
Go to Top of Page

xequte

39053 Posts
Posted - Oct 25 2017 :  16:36:22  Show Profile  Reply
Hi

Yes I do mean the themed_borders define, but I don't believe it will theme scrollbars in 6.3.0.

Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
Go to Top of Page
