| Author |
 Topic  |
|
|
izaque
Brazil
95 Posts |
 Posted - Mar 15 2012 : 07:51:27
|
Hi, after using "ImageEnView.Proc.CropSel," sometimes occurs in the image is with some black stripes, "like a barcode." What causes this problem?
 |
|
|
fab
1310 Posts |
Posted - Mar 15 2012 : 08:28:27
|
Hi,
please help me to reproduce this problem. Is the area with "barcodes" inside the selection?
Which is the pixel format? |
 |
|
|
izaque
Brazil
95 Posts |
Posted - Mar 15 2012 : 10:00:10
|

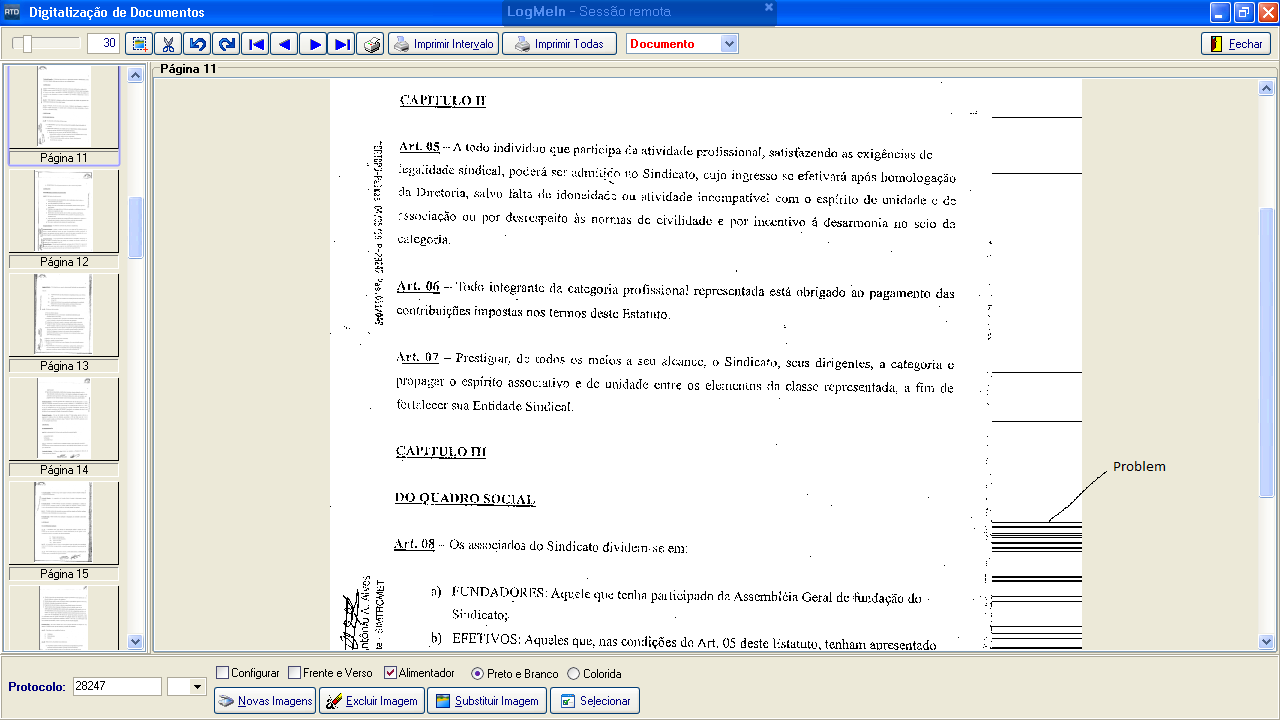

No, when you cut out the image with the "Crop", sometimes the picture has some risk of black color, which is not the image. When I send to the printer, the rich do not appear in print. But the image to load these risks appear. The image is black and white 2 bits.
Remember that "sometimes happens", so I'm not sure how it occurs, but is following commands:
ievImagem.Proc.CropSel;
ievImagem.DeSelect; |
|
|
|
fab
1310 Posts |
Posted - Mar 15 2012 : 10:31:18
|
| Please could you send an image (before crop) where this has happened at least one time and the coordinates of the selection? |
|
|
|
izaque
Brazil
95 Posts |
Posted - Mar 15 2012 : 11:09:12
|

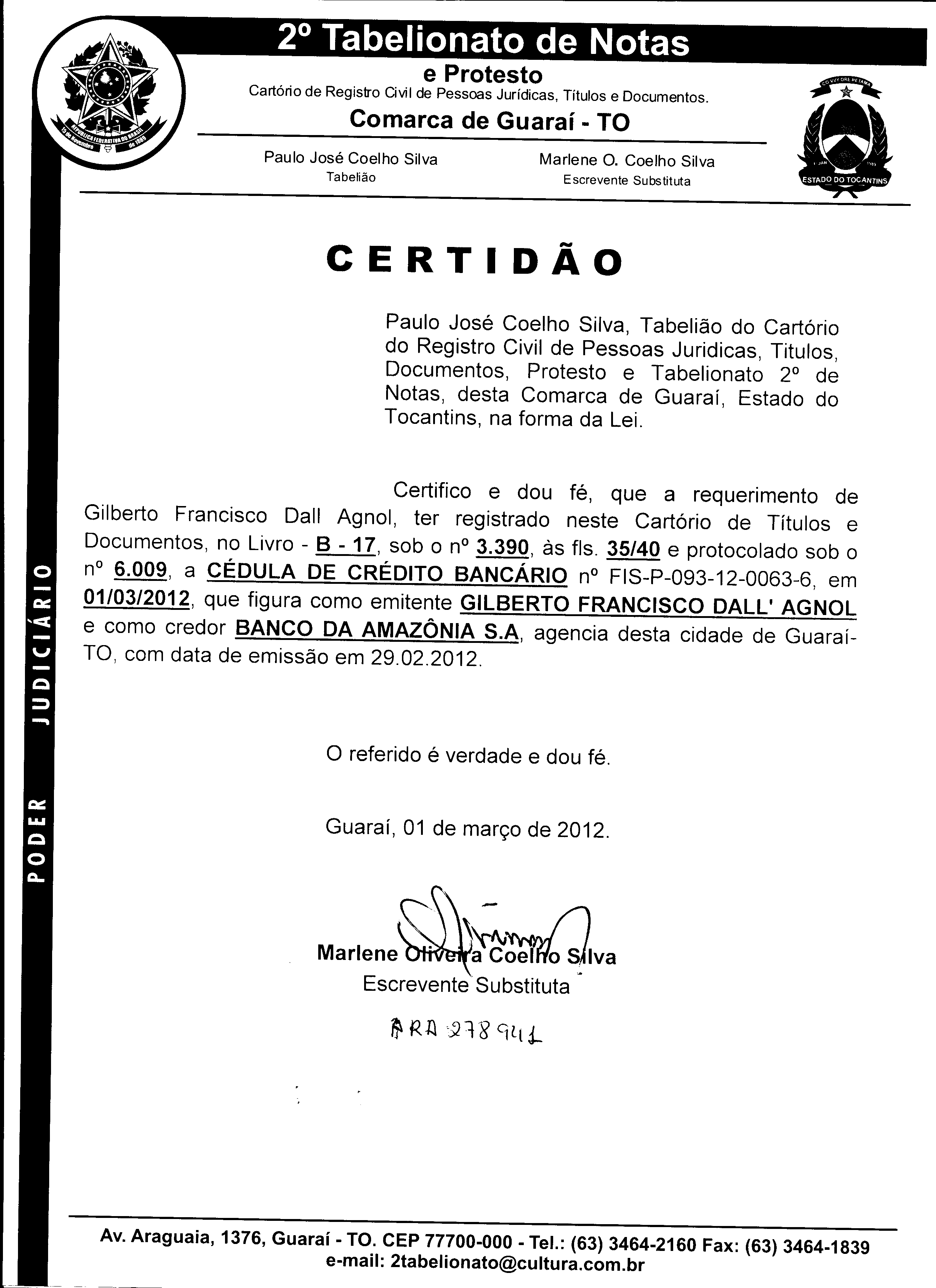

Fabrizio, is as follows:

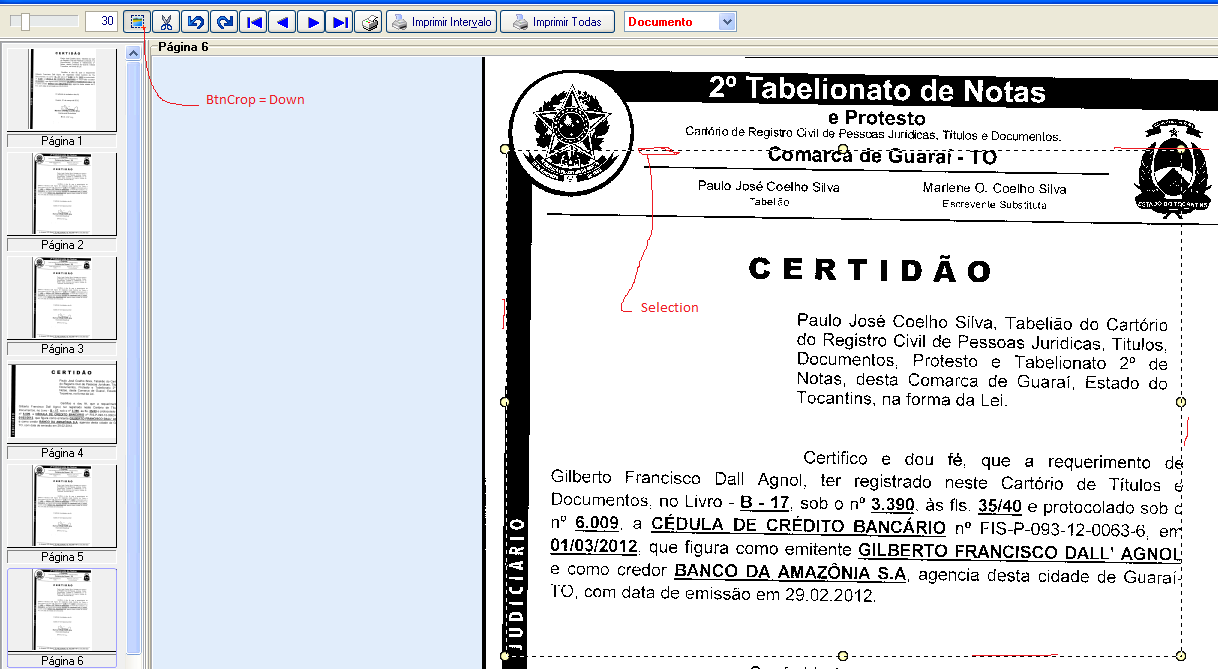

Step one:

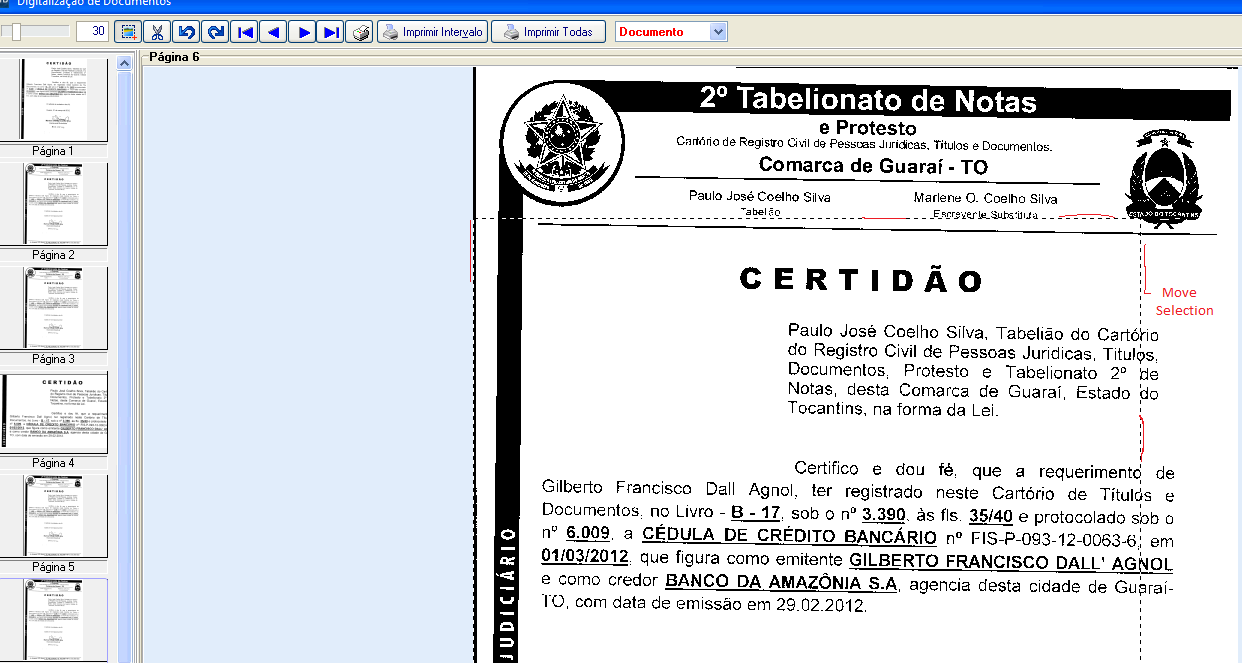

Step two:

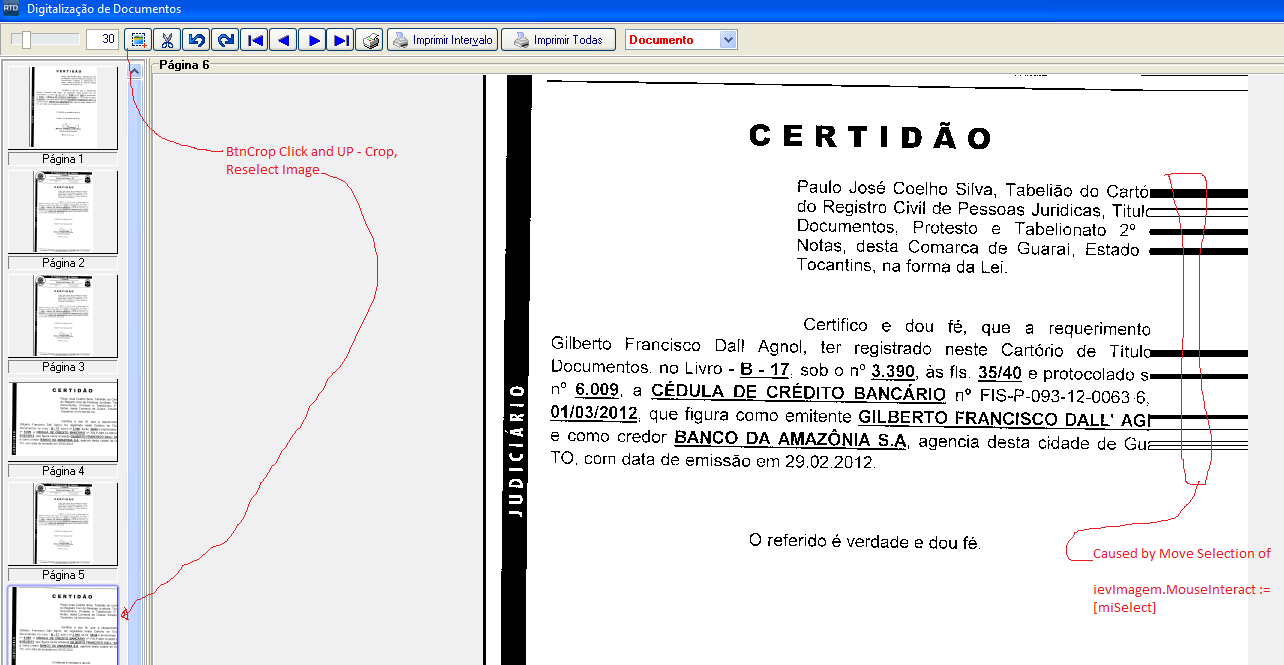

Step three:
 |
|
|
|
fab
1310 Posts |
Posted - Mar 15 2012 : 12:30:36
|
Unfortunately it doesn't help me to reproduce the problem.
Please let me know the coordinates of selection (in terms of SelX1, SelY1, SelX2 and SelY2) and send me the original image. |
|
|
|
izaque
Brazil
95 Posts |
Posted - Mar 15 2012 : 13:21:52
|
I do not know how to get these coordinates! I use "ImageEnView.MouseInteract: = [miSelect]"
But the problem is that I "move the selection", when the selection is moved and is on top of a black part of the picture it presents a risk to which blacks dragged the selection.
I do not know if this would be a bug, but either way it would be nice to verify. I managed to solve the problem using the following line:
iemvThumb.CopyToIEBitmap (idx, ievImagem.IEBitmap);
ImageEnView.Update;
ImageEnView.Refresh;
That is when I select the image in ImageEnMView. After I make a copy of ImageEnMView for ImageEnView I use ImageEnView.Update and ImageEnView.Refresh. Is a tip.
Thank you. |
|
|
|
fab
1310 Posts |
Posted - Mar 15 2012 : 23:29:28
|
quote:
I do not know how to get these coordinates!
Handle the event OnSelectionChange of TImageEnView and display the value of properties SelX1, SelY1,SelX2 and SelY2.
I still cannot reproduce, I'm sorry! |
|
|
|
izaque
Brazil
95 Posts |
Posted - Mar 16 2012 : 09:28:57
|
I managed to solve the problem using the following line no evento OnSelectImage(..):
ImageEnView.Update;
ImageEnView.Refresh;
You can close the topic! |
|
|
| |
