 Curved Textobject Problem
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

klausdoege

Germany
281 Posts

Posted - Oct 14 2019 :  08:09:32  Show Profile  Reply
Hi,
I have the following problem with curved text objects.
If I insert the object into the image with "Merge Objects",
the lowest part is cut off.
Normal text without a curve works fine.
How can I prevent this

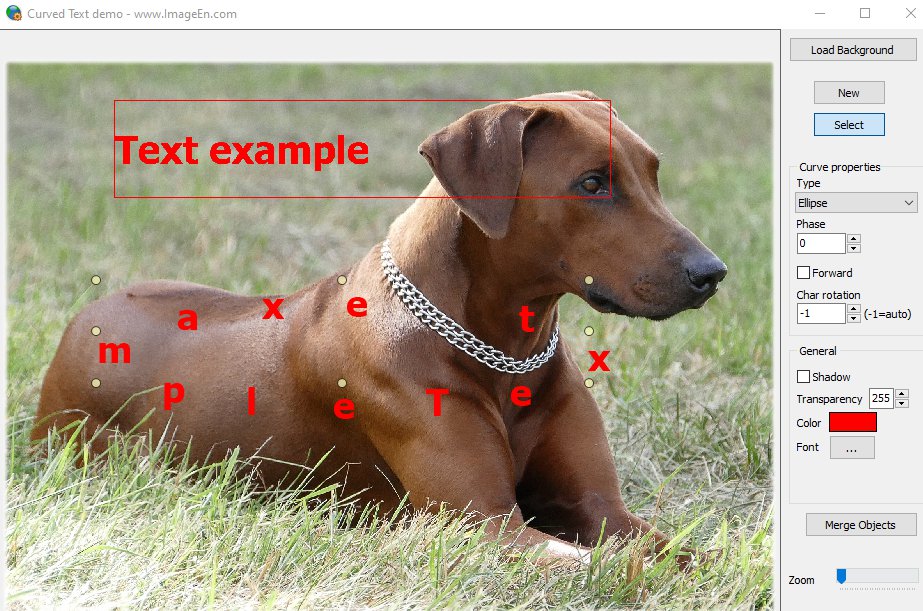

Before inserting:

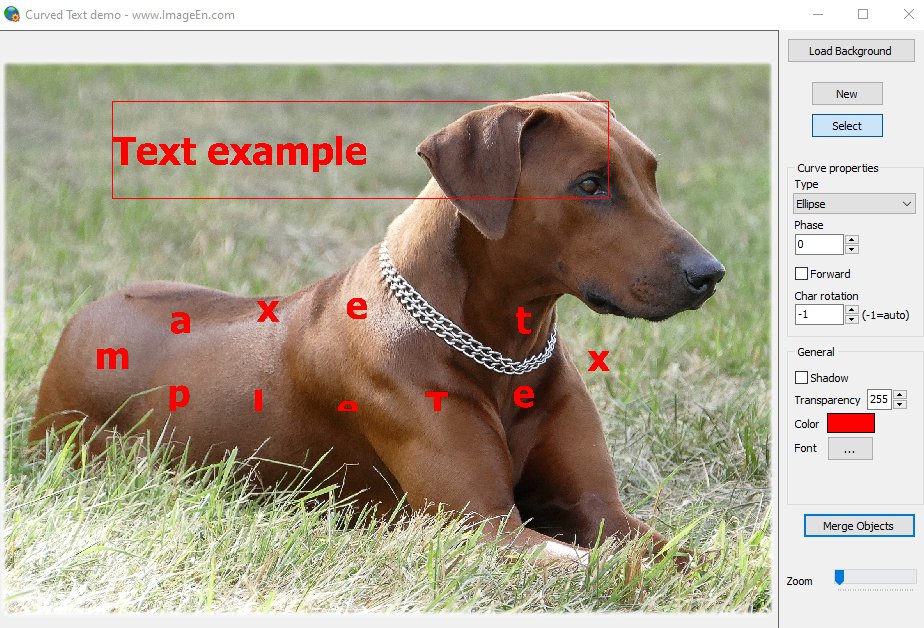

After insert:


Klaus
www.klausdoege.de

xequte

4852 Posts

Posted - Oct 14 2019 :  18:56:23  Show Profile  Reply
Hi Klaus

Yes, there looks to be a draw issue there. We'll investigate when we're next working on TImageEnVect.


Nigel
Xequte Software
www.imageen.com
Go to Top of Page

klausdoege

Germany
281 Posts

Posted - Oct 30 2019 :  14:06:26  Show Profile  Reply

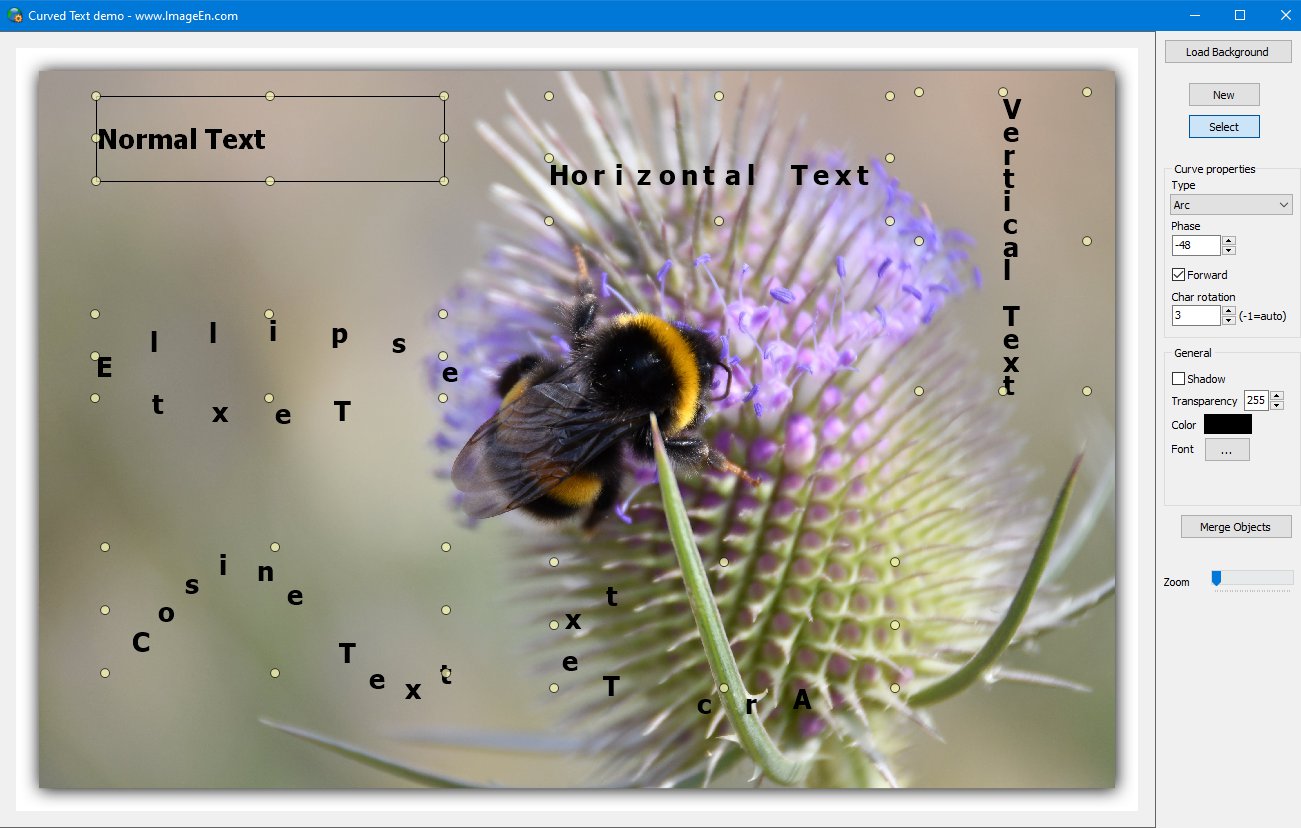

Here is a supplement to all text objects.
For all texts with curves, the selection points are partly within the text. This is very bad usable.
Only the dots in normal vertical and horizontal text are OK.
This is the current image version.




Klaus
www.klausdoege.de
Go to Top of Page

xequte

4852 Posts

Posted - Oct 30 2019 :  18:34:37  Show Profile  Reply
Hi Klaus

There will be a fix for this in 8.7.1. You can resolve it by defining:

{$DEFINE UseGDITextOut}

In ievect.pas

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

klausdoege

Germany
281 Posts

Posted - Oct 31 2019 :  06:47:23  Show Profile  Reply

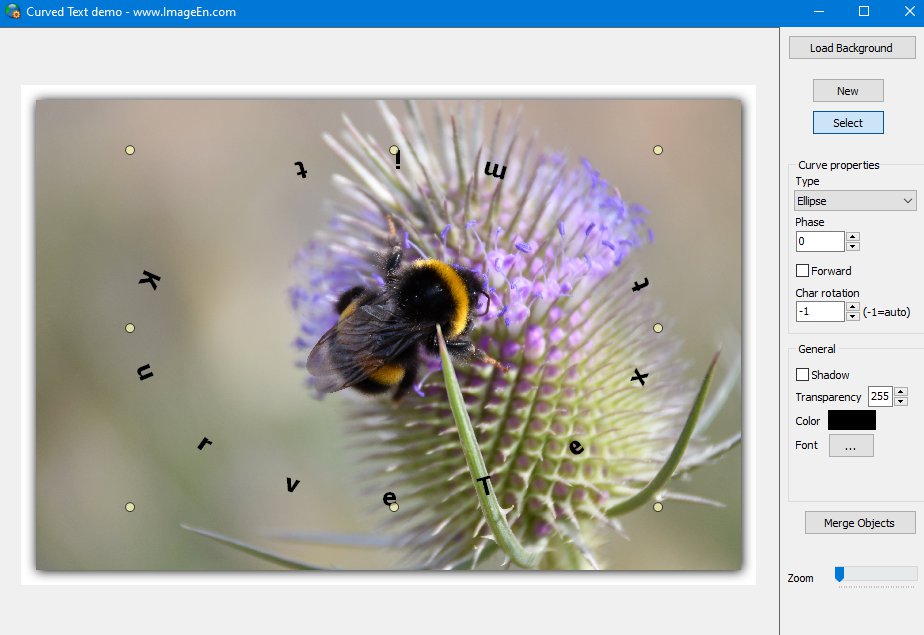

Hi Nigel,
Great, now it's perfect again.
Thanks for the quick help.

Klaus
www.klausdoege.de
