 How to Add a transparent textlayer?		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

supersk

95 Posts
Posted - Oct 15 2019 :  05:01:36  Show Profile  Reply

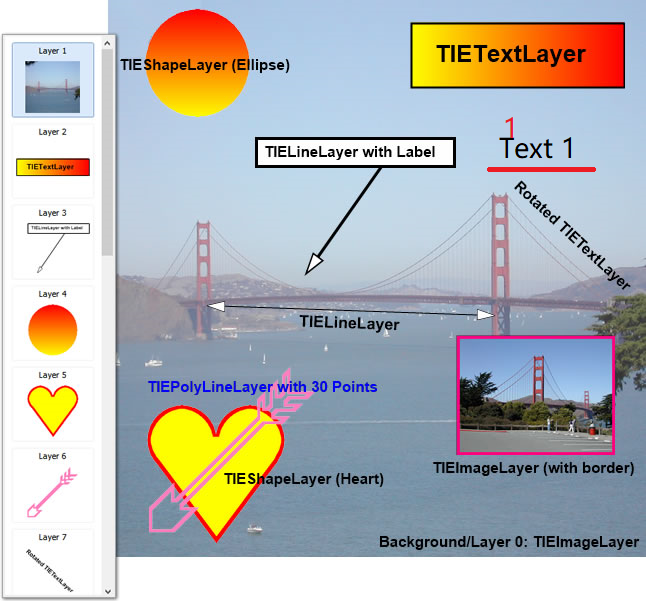

How to Add a transparent textlayer like Text1 in the following pic

xequte

38180 Posts
Posted - Oct 15 2019 :  17:00:54  Show Profile  Reply
Hi

As long as the text layer is not formatted, you can set FillColor to clNone:

https://www.imageen.com/help/TIETextLayer.FillColor.html



Nigel
Xequte Software
www.imageen.com
Go to Top of Page

supersk

95 Posts
Posted - Oct 16 2019 :  03:37:10  Show Profile  Reply
set FillColor to clNone. You will get different result.
Using “ADD 1” you will get transparent backgroud, but using “ADD 2” you will get white backgroud. Why? The code as follow.


attach/supersk/201910163376_LineErr.zip
9.74 KB
Go to Top of Page

xequte

38180 Posts
Posted - Oct 16 2019 :  15:02:22  Show Profile  Reply
Hi

You have set: EnableFormatting = true;

When Rich Text formatting is enabled, tramsparecy is not possible and the background is always painted.

EnableFormatting is only needed if you are looking to have different formatting within the same text block.

Nigel
Xequte Software
www.imageen.com
Go to Top of Page
