| Author |
 Topic  |
|
xequte
39218 Posts |
 Posted - May 24 2021 : 18:44:42
|
Sorry, I'm a bit behind on things after taking a few days off last week. I'll get onto this over the next few days.
Nigel
Xequte Software
www.imageen.com
|
 |
|
|
pierrotsc
USA
499 Posts |
Posted - May 24 2021 : 18:50:25
|
Sweet. thank you
Best |
|
|
|
xequte
39218 Posts |
Posted - May 24 2021 : 19:39:43
|
Hi
I added Wallpaper to this project at design time. It shows at design and runtime. Can you give me more information to reproduce?
Nigel
Xequte Software
www.imageen.com
|
|
|
|
pierrotsc
USA
499 Posts |
Posted - May 24 2021 : 19:43:05
|

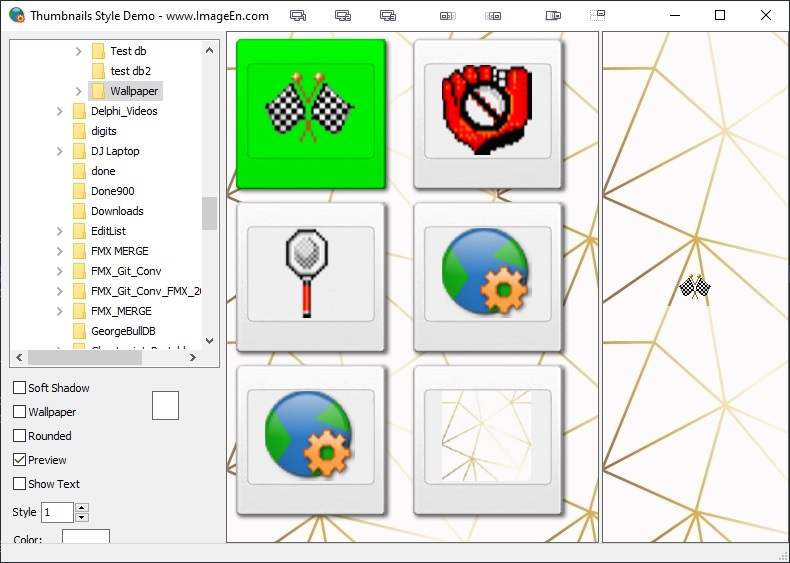

Look on the right of the soft shadow checkbox. i added an imageenview that should show a chain inside in design time. but as you can see from the picture above, it is blank. the wallpaper is gone.
The imageenview is very small. it is added to your demo |
|
|
|
xequte
39218 Posts |
Posted - May 24 2021 : 20:20:47
|
Hi
Wallpaper is a TPicture which means it needs VCL support for the image format. Otherwise it is lost when recompiling the form if the appropriate unit has not been added to the form (which is what happens when I view your form at design or runtime)
For JPEG, you would need to add Vcl.Imaging.jpeg. What type of image file did you use the wallpaper?
You are better to use ImageEn to load and assign the wallpaper at runtime:
// Wallpaper is a TPicture (which does not always support JPEG) so load into a TIEBitmap, and then assign the bitmap
bmp := TIEBitmap.Create( extractfilepath(paramstr(0)) + 'Wallpaper.jpg');
ImageEnMView1.Wallpaper.Assign( bmp.VclBitmap );
bmp.free;
Nigel
Xequte Software
www.imageen.com
|
|
|
|
pierrotsc
USA
499 Posts |
Posted - May 24 2021 : 20:27:02
|
| Yes. It is a jpeg. This is the same behavior I am getting with the database images. I will add the back.imaging.jpeg to see. The wallpaper was just another way to show the behavior I was experiencing. I will let you know tomorrow when I try. Thanks |
|
|
|
pierrotsc
USA
499 Posts |
Posted - May 24 2021 : 21:06:27
|
Nigel, does not work. The image still disappears. this is the same behavior i get with the iamgeendbview. The image loads in design time but disappears in run time.
That used to work tough. |
|
|
|
xequte
39218 Posts |
Posted - May 24 2021 : 23:52:20
|
Try doing it with a BMP file rather than a JPEG, so we can narrow it down to VCL JPEG support.
Nigel
Xequte Software
www.imageen.com
|
|
|
|
pierrotsc
USA
499 Posts |
Posted - May 25 2021 : 07:15:58
|
| I think I did and same behavior but I will try again in case. |
|
|
|
pierrotsc
USA
499 Posts |
Posted - May 25 2021 : 14:02:25
|
Nigel, loading jpeg, png or bmp wallpaper shows up in design time but disappear in runtime.
I bet if we can solve that, it will fix my database issue at the same time. same behavior
Best
Pierre |
|
|
|
pierrotsc
USA
499 Posts |
Posted - May 25 2021 : 18:49:26
|
Nigel, i modified the checkbox that load the wallpaper to reflect my imageenview.
procedure TForm1.CheckBox4Click(Sender: TObject);
var
bmp: TIEBitmap;
begin
if CheckBox4.Checked then
begin
// Wallpaper is a TPicture (which does not always support JPEG) so load into a TIEBitmap, and then assign the bitmap
bmp := TIEBitmap.Create( extractfilepath(paramstr(0)) + 'wallpaper.jpg');
imgvwChain.WallPaper.Assign( bmp.VclBitmap );
bmp.free;
end
else
imgvwChain.WallPaper := nil;
imgvwChain.Update;
end;
When you click the checkbox, nothing is happening. So something has changed sometimes.
Let me know what you find out.
Best |
|
|
|
xequte
39218 Posts |
Posted - May 27 2021 : 18:29:28
|
Hi
Please try this version of the code:
procedure TMainForm.CheckBox4Click(Sender: TObject);
var
bmp1, bmp2: TIEBitmap;
begin
if CheckBox4.Checked then
begin
// Wallpaper is a TPicture (which does not always support JPEG) so load into a TIEBitmap, and then assign the bitmap
if FileExists( extractfilepath(paramstr(0)) + 'wallpaper.jpg' ) = False then
raise Exception.create( 'File not found' );
bmp1 := TIEBitmap.Create( extractfilepath(paramstr(0)) + 'wallpaper.jpg');
if ( bmp1.Width < 20 ) or ( bmp1.Height < 20 ) then
raise Exception.create( 'Invalid image' );
if ( bmp1.VclBitmap.Width < 20 ) or ( bmp1.VclBitmap.Height < 20 ) then
raise Exception.create( 'Invalid bitmap' );
ImageEnView1.WallPaper.Assign( bmp1.VclBitmap );
if ImageEnView1.WallPaper = nil then
raise Exception.create( 'No wallpaper' );
bmp2 := TIEBitmap.Create();
bmp2.Assign( ImageEnView1.WallPaper.Bitmap );
bmp2.write( extractfilepath(paramstr(0)) + 'CHECK_THIS_IMAGE.jpg' );
bmp1.free;
bmp2.free;
end
else
ImageEnView1.WallPaper := nil;
ImageEnView1.Update;
end;
If that fails, then I suspect is seriously broken with TPicture handling in your project. An incompatible unit perhaps?
Nigel
Xequte Software
www.imageen.com
|
|
|
|
pierrotsc
USA
499 Posts |
Posted - May 27 2021 : 18:30:56
|
| thanks, let me try... |
|
|
|
pierrotsc
USA
499 Posts |
Posted - May 27 2021 : 18:49:13
|
| Ok, now this is weird. your code works when i use imageenview1 but when i replace it with imgvwChain that i have included, it does not. oh well. i am using the demo so no other unit is used. |
|
|
|
xequte
39218 Posts |
Posted - May 27 2021 : 20:07:11
|
Hi
The default state of a TImageEnView is a white bitmap the size of the window, so you won't see the wallpaper in imgvwChain unless you call imgvwChain.Blank;
Nigel
Xequte Software
www.imageen.com
|
|
|
|
pierrotsc
USA
499 Posts |
Posted - May 28 2021 : 10:51:42
|
Nigel, i modified the demo with your source code. clicking the checkbox should update both imageenview1 and the imgchain.
As you can see it works with imageenview1 by turning the wallpaper on and off the but imgchain does not. it displays the wallpaper but never turn off.
I did call the imgchain.blank.
If you got 2 mn, just run the demo and maybe you can find out what is going on.
Best
attach/pierrotsc/2021528105124_Thumbnails2.zip
71.08 KB |
|
|
|
xequte
39218 Posts |
Posted - May 31 2021 : 19:27:43
|
To remove the wallpaper use:
imgvwChain.Wallpaper := nil;
Nigel
Xequte Software
www.imageen.com
|
|
|
|
