 RichText formatting not exported in PDF		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

aleatprog

122 Posts
Posted - Oct 10 2021 :  13:38:56  Show Profile  Reply
Hi,

(1) creating a RichText layer using:
ImageEnView1.LayersAdd('Double click', 40, clBlack, 'Arial', []);
TIETextLayer(ImageEnView1.CurrentLayer).EnableFormatting := True;

or
ImageEnView1.LayersAdd(ielkText);
TIETextLayer(ImageEnView1.CurrentLayer).RichText := 'Double click';
TIETextLayer(ImageEnView1.CurrentLayer).EnableFormatting := True;

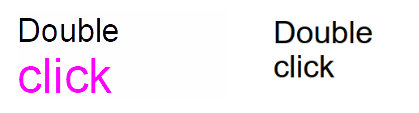

then (2) manually editing the text, first using the enter key to get the two words on two lines and than formatting the text (e.g. color and/or size of the word "click" or text orientation of "Double click") and (3) saving it as PDF using:
ImageEnView1.IO.SaveToFilePDF(PDFFile);

the text in the PDF file is on two lines but doesn't have the formatting changes.



What am I missing?

Al

xequte

38182 Posts
Posted - Oct 10 2021 :  18:15:44  Show Profile  Reply
Hi Al

I'm afraid Rich Text formatting is not supported when exporting to PDF. I will add this to the documentation.

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

aleatprog

122 Posts
Posted - Oct 11 2021 :  05:52:08  Show Profile  Reply
The following workaround converts the text layers to images before saving to PDF thus maintaining the RichText formatting.
for i := 0 to ImageEnView1.LayersCount - 1 do
if TIELayer(ImageEnView1.Layers[i]) is TIETextLayer then
ImageEnView1.Layers[i].ConvertToImageLayer(1, True);

Al
Go to Top of Page

xequte

38182 Posts
Posted - Oct 12 2021 :  00:22:48  Show Profile  Reply
Hi Al

Yes, that is a suitable workaround, though note that the text will not be selectable like other text (or available via Find for example).




Nigel
Xequte Software
www.imageen.com
Go to Top of Page
