 Unable to access Dicom Sequence Tag
 New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

Ronald Ruijs

Netherlands
24 Posts

Posted - Jun 13 2022 :  13:49:05  Show Profile  Reply
Hello,

Refer to attached zip, which contains Dicom file cplx_p01.pre (Presentation State, not an image). Using ImageEn 11.0.1, I can read the Dicom Tags, but I am unable to access the contents of Sequence Tags. I can see that the Sequence tag 0008,1115 contains 1 item, but I cannot access the contents.

In this case, the sequence contains 1 item, which contains 2 tags: 0008,1150 and 0008,1155, refer to attached file plx_p01.xml in zip.

Issue is specific for this image (and other test images from the same testset). Most other image have no problems accessing Sequence Tag contents.

Am I missing something, or is there something wrong with reading Dicom Sequence tags?

Best regards,

Ronald

attach/Ronald Ruijs/2022613134651_cplx_p01.zip
3.26 KB

xequte

7022 Posts

Posted - Jun 13 2022 :  21:25:07  Show Profile  Reply
Hi Ronald

Have you tried the method described at:

https://www.imageen.com/help/TIEDicomTags.GetTag.html



Nigel
Xequte Software
www.imageen.com
Go to Top of Page

Ronald Ruijs

Netherlands
24 Posts

Posted - Jun 14 2022 :  01:15:43  Show Profile  Reply
Hi Nigel,

No, did not, and yes, I should have, as code in help file works OK.
Thanks for pointing that out.

Regards, Ronald

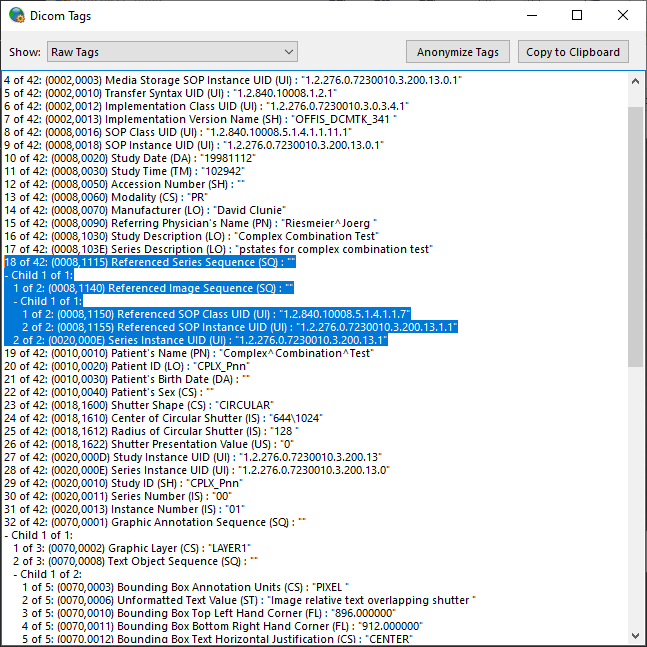

PS is the application you show in your answer as part of ImageEn Samples?
Go to Top of Page

xequte

7022 Posts

Posted - Jun 14 2022 :  17:04:47  Show Profile  Reply
Hi Ronald

It is an upgraded version of the DICOM tags demo (will be in 11.0.2).

attach/xequte/202261417215_DicomTagsDemo.zip
3388.83 KB

Nigel
Xequte Software
www.imageen.com
Go to Top of Page
