 ParamsFromFile and raw files
 New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

yeohray2

Malaysia
67 Posts

Posted - Jul 24 2022 :  03:42:05  Show Profile  Reply
Hi, I need to read only the EXIF details from raw files, so I'm using ParamsFromFile and it works. However, it's rather slow and looking at the Task Manager, the disk where the raw files are stored in is running at 100%. This suggests that almost the entire RAW file, which is ~30 MB each, is being read.

I was hoping that ParamsFromFile would need to read only a portion of the RAW file. Is there any setting that I can use to speed up the process? I'm using ImageEn 10.2, and the ielibx.dll. Using the WIC option is even slower. I've also tried using the thumbnail options like these:

FWorkImage.IO.Params.RAW_GetExifThumbnail := False;
FWorkImage.IO.Params.RAW_GetEmbeddedJpeg := False;
FWorkImage.IO.Params.RAW_HalfSize := True;

FWorkImage.IO.ParamsFromFile(AFileName, True);

but it makes no difference.

Should add that using ParamsFromFile on jpeg files is extremely fast, and doesn't seem to read the entire file (though I might be wrong).

Thanks in advance.

Ray

xequte

7077 Posts

Posted - Jul 24 2022 :  18:29:36  Show Profile  Reply
Hi Ray

I cannot reproduce that.

Is the ielib DLL in the exe folder? What is the value of IEGlobalSettings().ActiveCameraRawEngine

https://www.imageen.com/help/TIEGlobalSettings.ActiveCameraRawEngine.html

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

yeohray2

Malaysia
67 Posts

Posted - Jul 25 2022 :  03:58:28  Show Profile  Reply
Hi Nigel,

It's using the ielib DLL. I've uploaded some sample image files and the source for a simple test application here - https://drive.google.com/drive/folders/1RB4ZzGKI15BgyLMr9xWbRpLl8cjaYKu_?usp=sharing

The problem with running the test is that the image files might already be cached by Windows when you download and extract the files, so the test completes very fast without touching the disk at all.

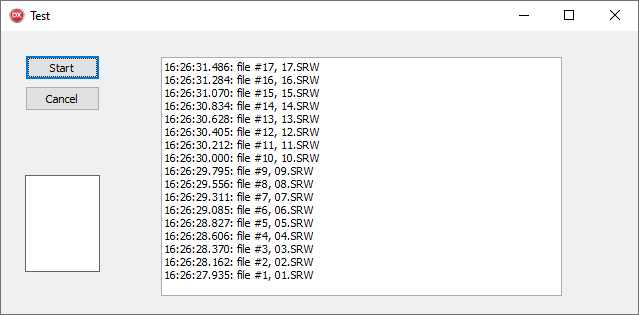

This is the result on my PC when newly rebooted:



It averages about 5 - 6 files every second, and you can see the disk reads maxing out in Task Manager.

Thanks in advance.

Ray
Go to Top of Page

xequte

7077 Posts

Posted - Jul 28 2022 :  00:47:56  Show Profile  Reply
Hi Ray

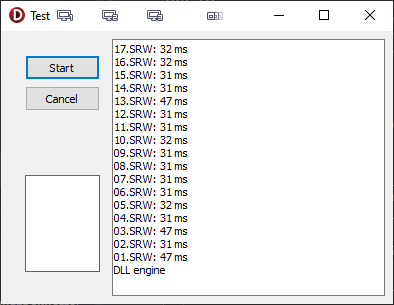

On my test system the all 17 files are processed in a total of 0.5 seconds:



But I am reading from a local hard drive. LibRaw will be reading the whole file into memory to process it (even if it only reads the header data). So this may be slow for files located on a network device.



Nigel
Xequte Software
www.imageen.com
Go to Top of Page

yeohray2

Malaysia
67 Posts

Posted - Jul 28 2022 :  02:04:32  Show Profile  Reply
Hi Nigel,

I guess you're using an SSD drive? If libraw has to read the entire file even if I only need the metadata, then processing 6 files/second on my IDE hard disk drive is normal then. Thanks.

Ray
Go to Top of Page

xequte

7077 Posts

Posted - Jul 28 2022 :  02:15:48  Show Profile  Reply
Yes, the speeds above are for an SSD. On a slower WD drive I get about the same speed as you.

Nigel
Xequte Software
www.imageen.com
Go to Top of Page
