 Polyline linewidth question
 New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

GEVI

Canada
9 Posts

Posted - Jan 25 2024 :  14:17:31  Show Profile  Reply
Hi.

I am trying Line Layers Demo. I want to use LineWidth property for some processing.

I changed the max line width from 100 to 1000000, and I see that depending on the polyline polygon after certain line width an artifact starts to appear.

I would like to know if it is possible to obtain this max line width size or if there is any way to detect when artifacts start to appear given the initial polygon.

Here are some samples:

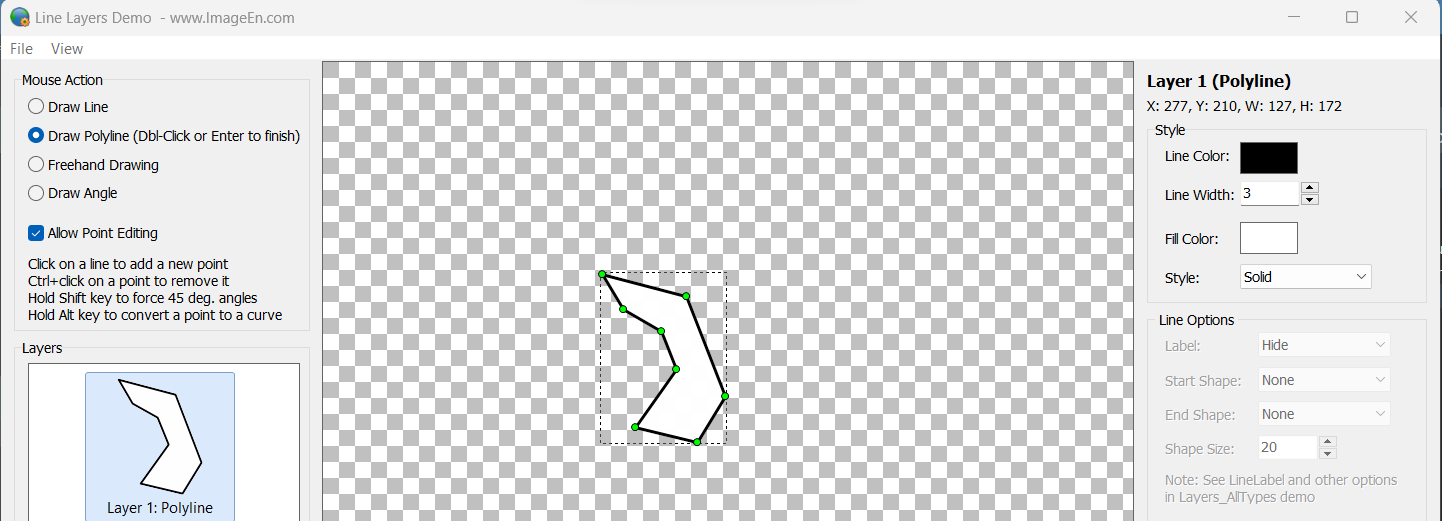

  • Initial polygon:

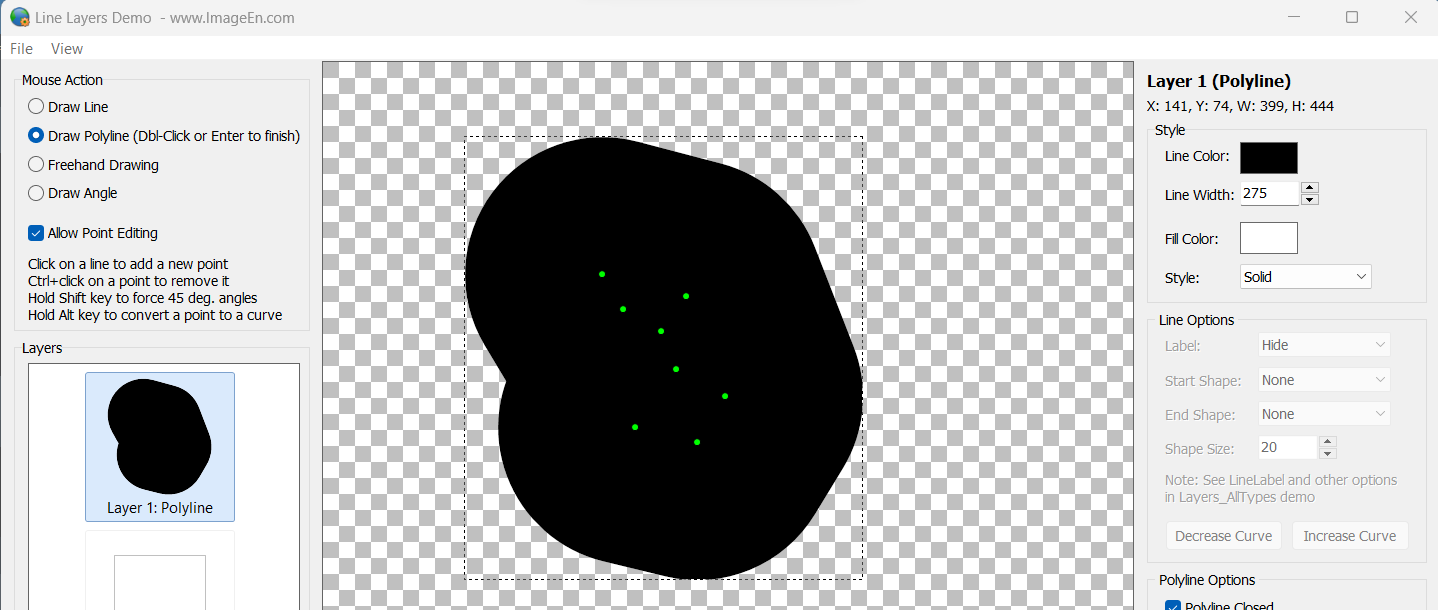

  • This is what I would expect for all line widths:

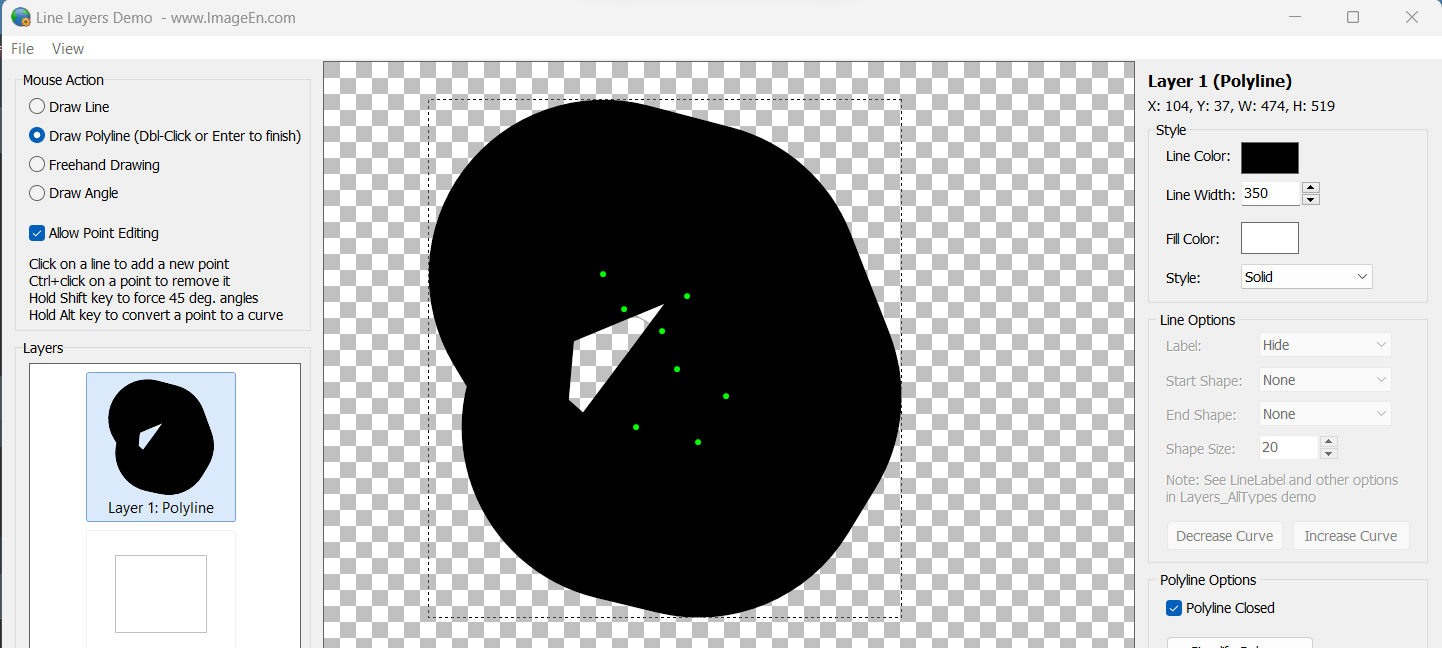

  • This is what happens after certain line width:



Thanks in advance.




GEVI

xequte

38046 Posts

Posted - Jan 25 2024 :  19:49:36  Show Profile  Reply
Hi

Hmmm, I think it may be a GDI+ issue as I can reproduce it when drawing directly to the GDI+ canvas. We will need to investigate if there is a workaround.

Nigel
Xequte Software
www.imageen.com
