Document size on a Brother scanner

New Topic

Reply to Topic

Author

Topic

bielfiol

Spain
3 Posts

Posted - Mar 31 2025 : 07:55:11

With ImageEn 14.0.0.33634, the document adquired with a Brother scanner is incorrect.

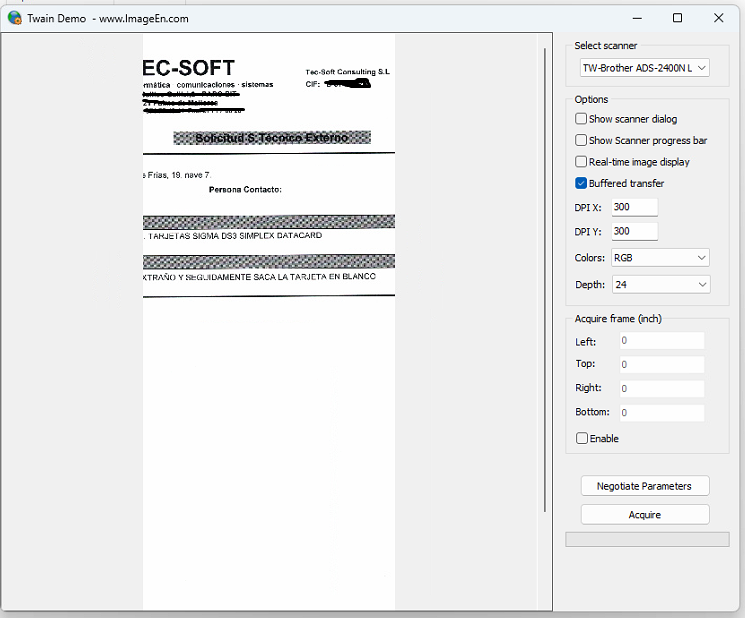

If I do not show de scanner dialog I recive this image:

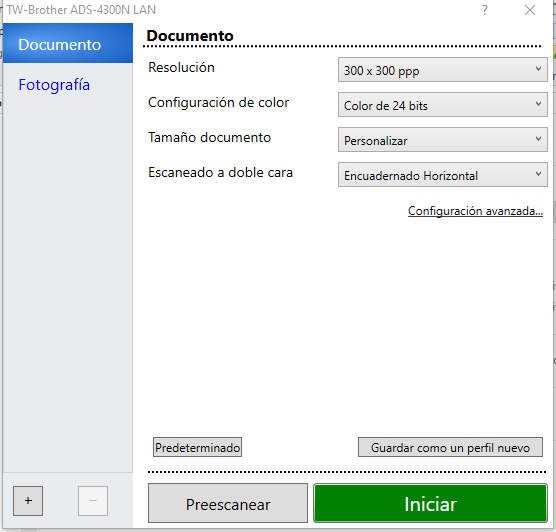

If I check "Show scanner dialog" when adquire the image I can see the scanner dialog whit this options:

If I change "Tamaño documento" and select "Automatic" I recive the correct image.

I'm using the application demo example and I tryed with two direrent Brother scanners.

With a version 9 of ImageEn I had scann with no problem, and with version 10.3 I could scann correctly but allways showing the scanner dialog.

Regards!

xequte

38952 Posts

Posted - Mar 31 2025 : 15:42:23

Sorry, can you email me for the fix in the the latest beta.

Otherwise, does the following resolve it:

IEGlobalSettings().TwainCompatibilityOptions := IEGlobalSettings().TwainCompatibilityOptions + [ietcExplicitAcquireFrame];

Nigel
Xequte Software
www.imageen.com
