 Connect to the local IP Camera
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

chouk

Algeria
18 Posts

Posted - Feb 04 2020 :  04:51:47  Show Profile  Reply
Hi,

I am trying to connect to the local IP camera which is connected to a switch with a static IP address (192.168.0.10) and user name admin, I am using the CaptIPCamera demo.
I cannot connect to the camera (nothing happens, no error message), I can ping it and I can connect with software installed with the camera, I I've turned off the firewall and the antivirus. I have not used an IP camera before.

Thank's for help.

xequte

4981 Posts

Posted - Feb 04 2020 :  13:59:57  Show Profile  Reply
Hi

Are you able to view the camera from a web browser by joining the values as followed:

http://USERNAME:PASSWORD@IP_ADDRESS/PATH

e.g.

ht tp://user:pass@60.33.230.11/nphMotionJpeg?Resolution=640x480



Nigel
Xequte Software
www.imageen.com
Go to Top of Page

chouk

Algeria
18 Posts

Posted - Feb 04 2020 :  16:51:23  Show Profile  Reply
Hi,
I can't connect with browser, i use :
http://admin:@192.168.0.10/nphMotionJpeg?Resolution=640x480 (i haven't password)
i get a corrupted file nphMotionJpeg

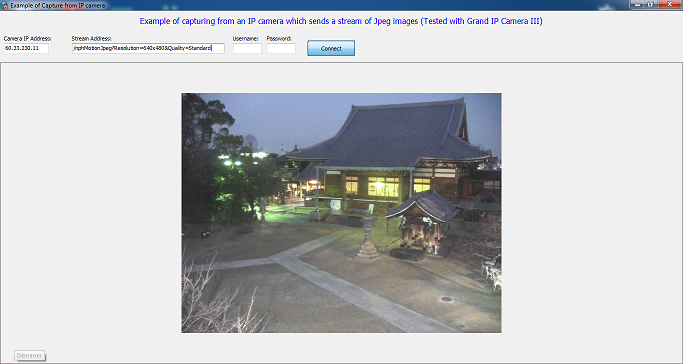

with your adress (60.33.230.11) i get






It's work in browser i get same video).

Thank's
Go to Top of Page

chouk

Algeria
18 Posts

Posted - Feb 04 2020 :  16:55:41  Show Profile  Reply
Hi,
Also the software (Active X) provided with the czmerz work in the web browser





Go to Top of Page

xequte

4981 Posts

Posted - Feb 05 2020 :  04:37:21  Show Profile  Reply
Hi

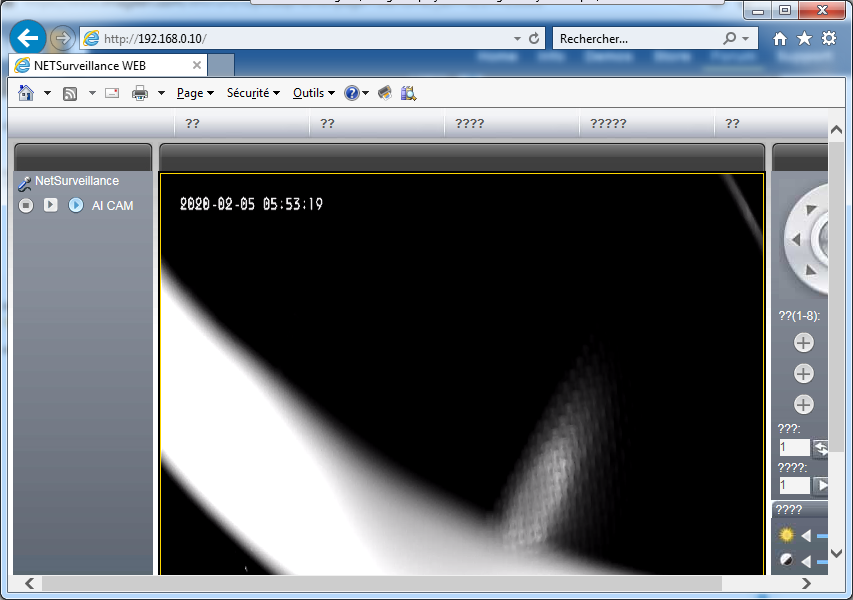

You can see from your screenshot that 192.168.0.10 is not the location of an image file. It is the location of a web interface. Somehow you must find the URL of the image itself. Can you right click the image and choose "View Image" and if so, does it animate/update?

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

chouk

Algeria
18 Posts

Posted - Feb 05 2020 :  05:49:08  Show Profile  Reply
Hi,
You mean in the broser ? I Can't right click.

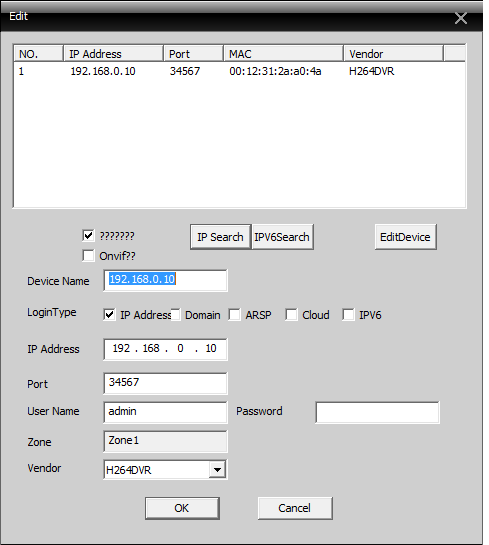

In this screen you can see configuration of the camera

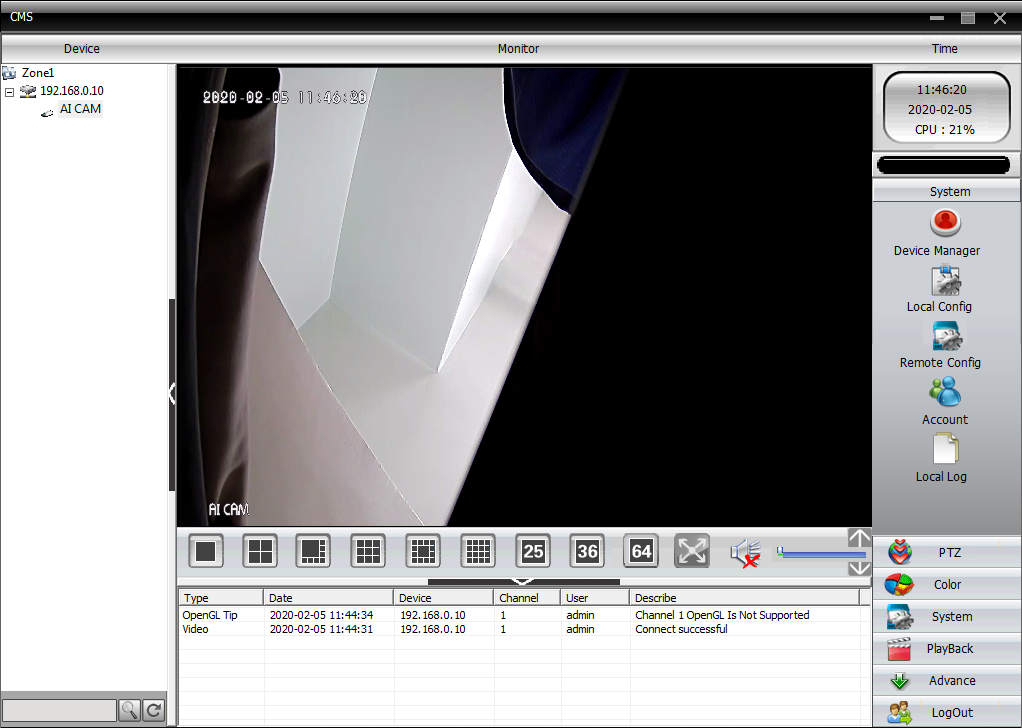

and a screen delivre with software




Regards,

choukri
Go to Top of Page

xequte

4981 Posts

Posted - Feb 05 2020 :  13:37:36  Show Profile  Reply
Hi

Are you able to make it publicly accessible, so I can test it from here?

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

chouk

Algeria
18 Posts

Posted - Feb 06 2020 :  07:32:22  Show Profile  Reply
Hi,

I'm trying to figure out how to make the camera publicly accessible.

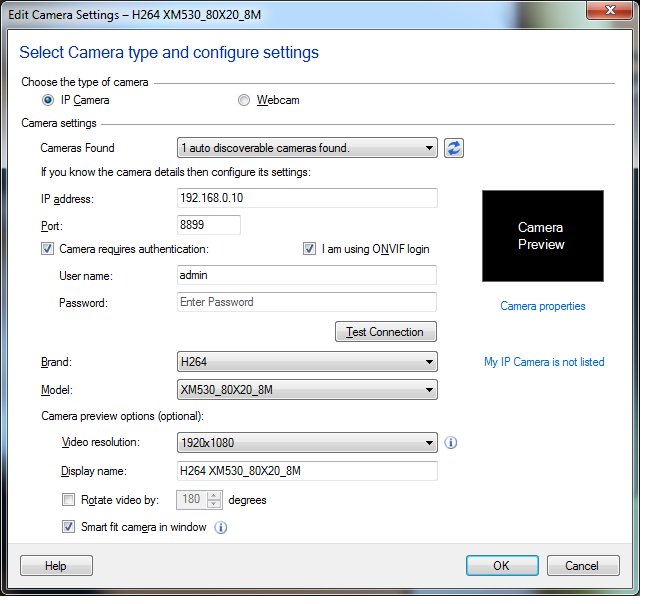

In the meantime i installed IP Camera Viewer and I can see the camera with these parameters




The "I am using the ONVIF Login" must be checked to work.

I don't know if it can help ?

Regards,

Choukri
Go to Top of Page
