TImageEnView.SelectRoundRect

Declaration

procedure SelectRoundRect(Left, Top, Right, Bottom, RoundWidth, RoundHeight: integer; Op: TIESelOp = iespReplace);

Description

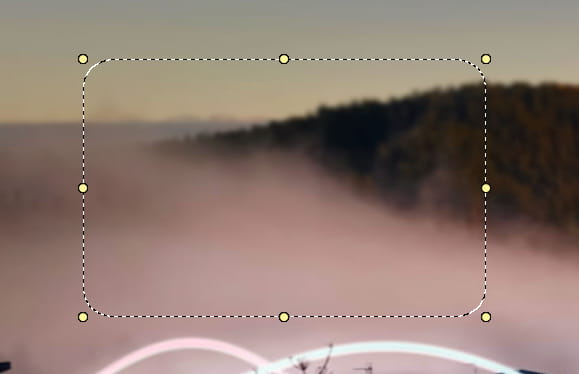

Creates a rectangular selection with rounded corners.
Left, Top, Right, Bottom are the rectangle coordinates.
RoundWidth and RoundHeight specify the size of the rounding (in pixels).
Op specifies whether to add a new selection (iespAdd) or replace the current one (iespReplace).

The style of selection are specified by:
◼SelColor1
◼SelColor2
◼SetSelectionGripStyle

Note:
◼SelectRoundRect creates a "vectorized" selection (the selection will be made up of a series of lines and can be accessed via PolySel)
◼You can allow your user to make a rounded rectangular selection by enabling SelectionRounding

Demo

Demos\ImageEditing\EveryMethod\EveryMethod.dpr

Example

// Add a curved rectangular selection and clear
ImageEnView1.SelectionBase := iesbBitmap;
ImageEnView1.SelectRoundRect( 160, 120, ImageEnView1.IEBitmap.Width - 160, ImageEnView1.IEBitmap.Height - 120, 30, 30 );

ImageEnView1.Proc.ClearSel( True );

Other Selection Methods

◼Select
◼SelectEllipse
◼SelectMagicWand
◼SelectChromaKey
◼SelectShape
◼SelectCustom

View a preview of all selection types
