TImageEnView.SelectShape

Declaration

procedure SelectShape(Left, Top, Right, Bottom: integer;
Shape: TIEShape; ShapeAngle: Integer = 0; ShapeModifier: Integer = 0;
Op: TIESelOp = iespReplace);

Description

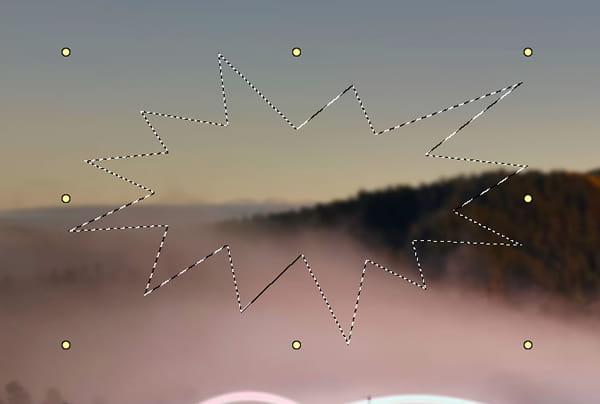

Creates a polygonal selection using one of ImageEn's vector shapes.

Left, Top, Right, Bottom are the selection bounds (in terms of the control area).
Shape specifies the selection shape, which can be modified using ShapeModifier and ShapeAngle.
Op specifies whether to add a new selection (iespAdd) or replace the current one (iespReplace).

The style of selection are specified by:
◼SelColor1
◼SelColor2
◼SetSelectionGripStyle

Note:
◼SelectShape creates a "vectorized" selection (the selection will be made up of a series of lines and can be accessed via PolySel)
◼You can allow your user to make a shaped selection by enabling SelectionShape
◼Values are specified in terms of the control area, to specify values in terms of the bitmap, set ImageEnView1.SelectionBase := iesbBitmap;

Demo

Demos\ImageEditing\EveryMethod\EveryMethod.dpr

Example

Also see: Automated Samples

// Add a "Heart" shape selection and clear
ImageEnView1.SelectionBase := iesbBitmap;
ImageEnView1.SelectShape( 160, 120, ImageEnView1.IEBitmap.Width - 160, ImageEnView1.IEBitmap.Height - 120, iesHeart );

ImageEnView1.InvertSelection( True );
ImageEnView1.Proc.ClearSel( True );

Other Selection Methods

◼Select
◼SelectEllipse
◼SelectMagicWand
◼SelectChromaKey
◼SelectRoundRect
◼SelectCustom

View a preview of all selection types
