ImageEn

IEVision





Description

IEVision is an optional plugin for ImageEn which adds advanced features. IEVision is sold separately from ImageEn. It can be purchased from:
www.imageen.com/order/#IEVision


Feature Description More Info Demo Project Folder Compiled Demo

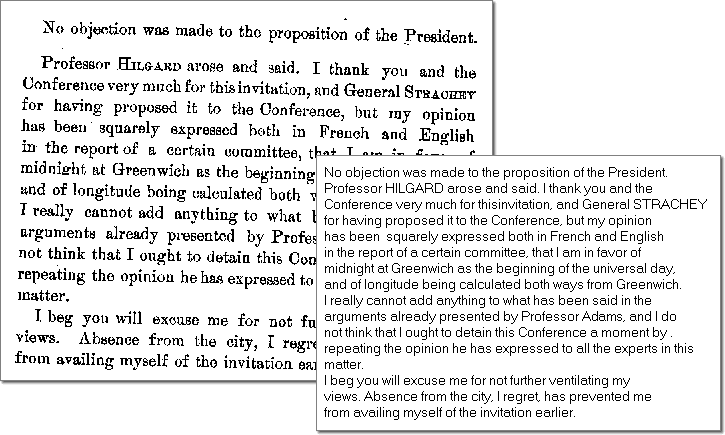

OCR Optical character recognition supporting more than 100 languages TIEVisionOCR IEVision\OCR\OCR.dpr
Barcode Reading (Images) Reading barcodes in images and videos, with support for EAN-13/UPC-A, UPC-E, EAN-8, Code 128, Code 39, Interleaved 2 of 5 and QR Code TIEVisionBarCodeScanner IEVision\Barcode\Barcode.dpr
Barcode Reading (Video) Reading barcodes in live videos, with support for EAN-13/UPC-A, UPC-E, EAN-8, Code 128, Code 39, Interleaved 2 of 5 and QR Code TIEVisionBarCodeScanner IEVision\BarcodeCam\BarcodeCam.dpr

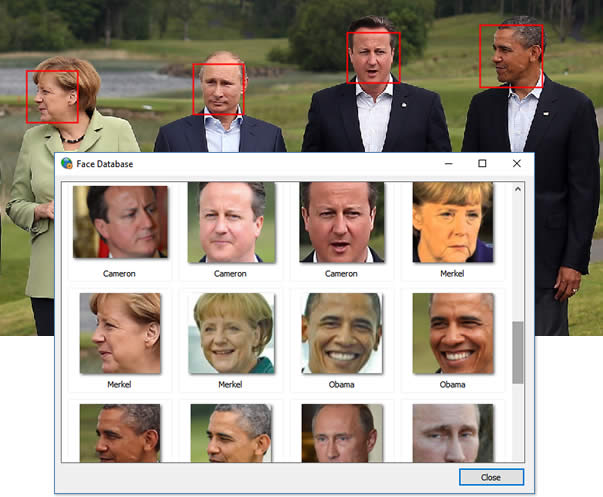

Facial Recognition Searching for known faces TIEVisionFaceRecognizer IEVision\FaceRecognizer\FaceRecognizer.dpr

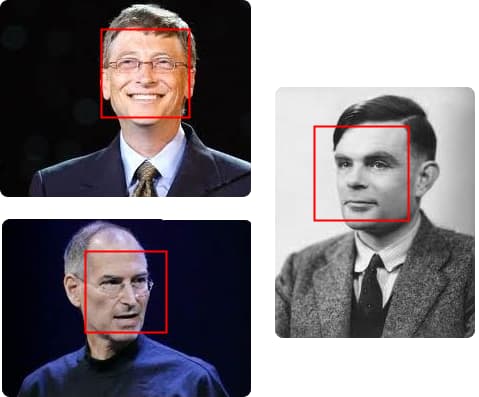

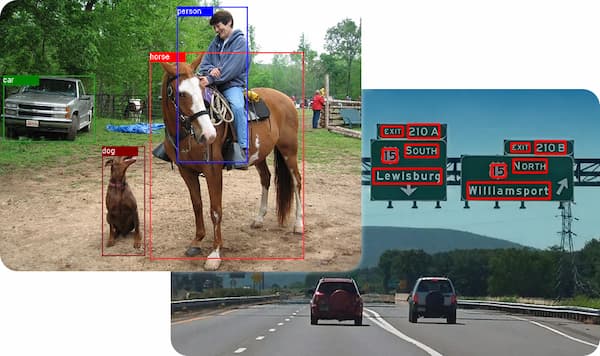

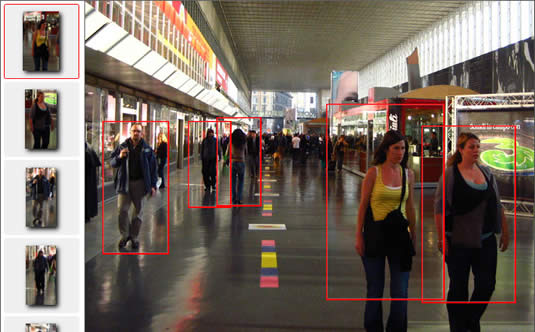

Human and Object Detection Finding people, faces, eyes, glasses, smile, body (full/upper/lower), cat faces and Russian number plates TIEVisionObjectsFinder IEVision\GetFaces\GetFaces.dpr

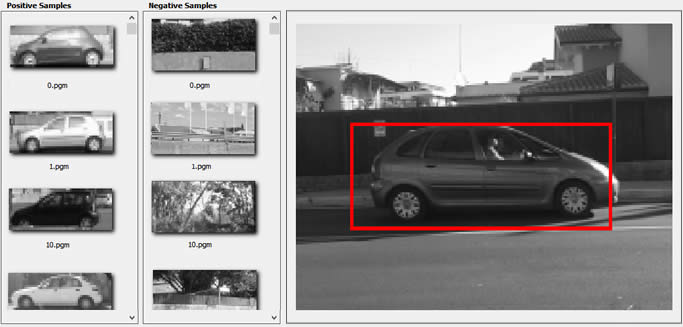

Classifying Images Image classification by training with positive and negative samples TIEVisionCascadeClassifierTrainer IEVision\TrainCascadeClassifier\TrainCascadeClassifier.dpr
Matching Points in Image Set Finding points that match in a set of two images, e.g. to auto-align an image TIEVisionORBFeaturesDetector IEVision\ImageAlignment\ImageAlignment.dpr

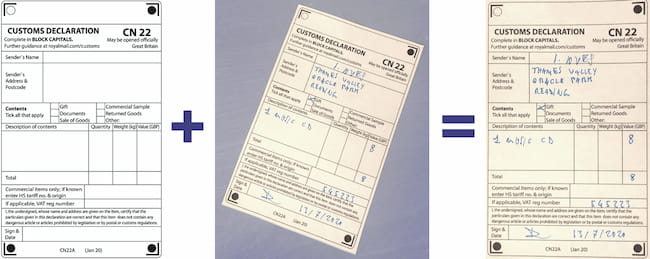

Auto Image Alignment Warping the perspective of an image based on matching points (homography matrix) findHomography IEVision\ImageAlignment\ImageAlignment.dpr

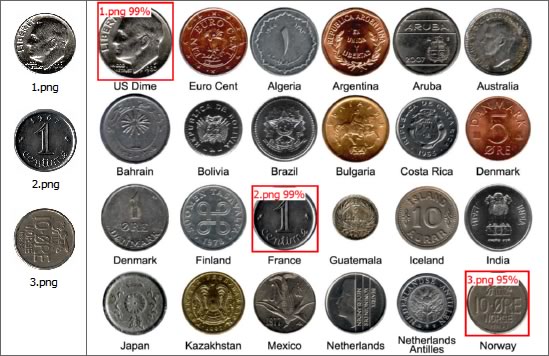

Matching within Image Searching an image for matches based on a source image TIEVisionImage.matchTemplate IEVision\PatternMatching\PatternMatching.dpr

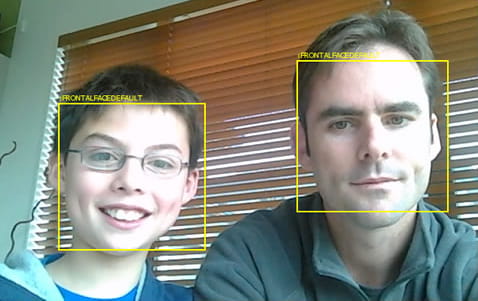

Track Objects (Video) Tracking (following) faces and objects in a video stream TIEVisionObjectTracker IEVision\TrackObjects\TrackObjects.dpr

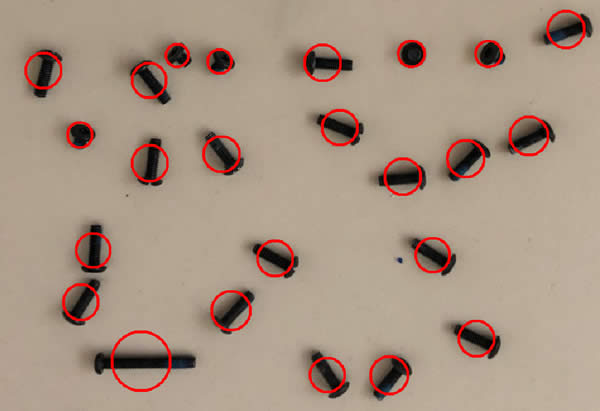

Blob Detection Locating blobs/shapes within an image TIEVisionBlobDetector IEVision\BlobDetection\BlobDetection.dpr

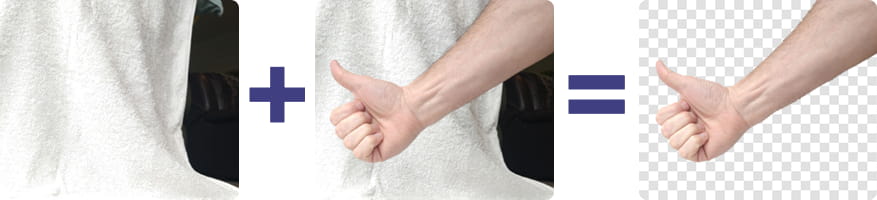

Background Removal (Images) Subtracting the background from an image using a source background image TIEVisionBackgroundSubtractor IEVision\BackgroundSubtractImage\BackgroundSubtractImage.dpr
Background Removal (Video) Live replacement of the background of a video stream TIEVisionBackgroundSubtractor IEVision\BackgroundSubtract\BackgroundSubtract.dpr

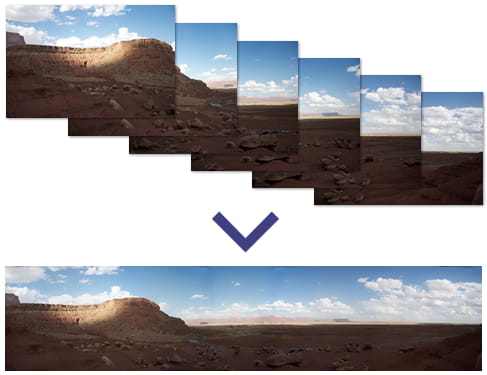

Photo Stitching Generating a single image from multiple source images TIEVisionStitcher IEVision\Stitcher\Stitcher.dpr

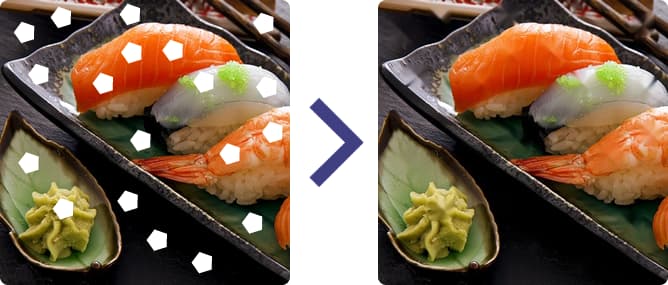

Image Patching Inpainting images to hide blemishes and copy content TIEVisionImage.inpaint IEVision\Inpaint_Brush\Inpaint_Brush.dpr
Searchable PDF Generation Convert images containing text to searchable PDF files TIEVisionSearchablePDFGenerator IEVision\GenerateSearchablePDF\GenerateSearchablePDF.dpr

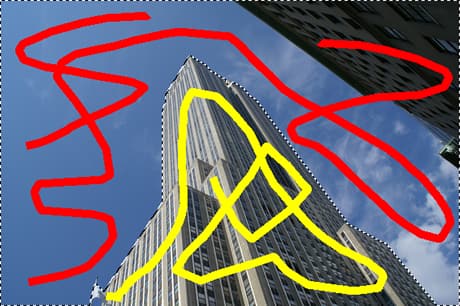

Watershed Automatic Selection Automatic selection of objects by painting TIEVisionWatershed IEVision\WatershedSelection\WatershedSelection.dpr

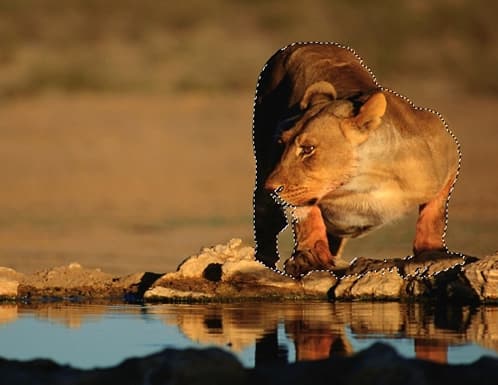

Grabcut Automatic Selection Automatic selection of the main subject within an image TIEVisionGrabCut IEVision\GrabCutSelection\GrabCutSelection.dpr
Denoising Removal of digital noise using the "Non-local Means" algorithm fastNlMeansDenoisingColored IEVision\Denoising\Denoising.dpr

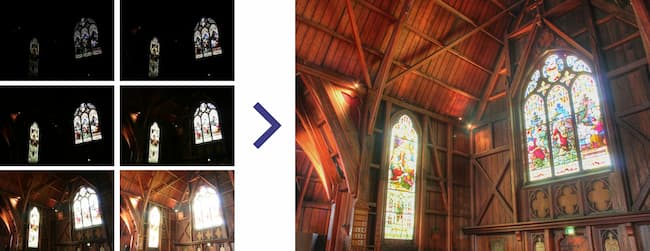

Exposure Fusion Merge images taken with multiple exposures into a single image TIEVisionExposureMerger IEVision\ExposureFusion\ExposureFusion.dpr
Edge Detection Detection of edges within an image using the "Canny" algorithm TIEVisionImage.canny IEVision\LinesDetect\LinesDetect.dpr

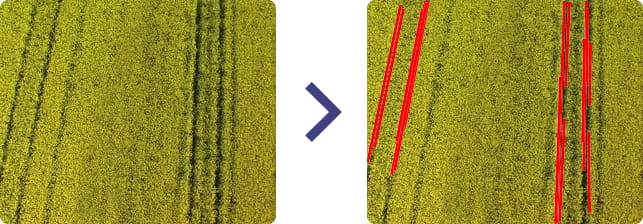

Line Detection Detection of lines within an image using Hough transformations TIEVisionImage.houghLinesP IEVision\LinesDetect\LinesDetect.dpr
Other Advanced Image Algorithms Blurring, Smoothing, Dilation, Erosion and Threshold TIEVisionImage ImageEditing\BrushTool\PaintBrush.dpr


OCR





Inpainting





Face Detection





People Detection





Facial Recognition





Background Removal





Auto Image Alignment





Object Tracking





Image Matching





Photo Stitching





Blob Detection





Classifier Training





Watershed Selection





GrabCut Selection






IEVision Usage

In order to use IEVision you must copy the IEVision DLL to the same folder as your executable or in any location in the system path.
You can check if the IEVision DLL is accessible by ImageEn calling IEVisionAvailable function. For example:

if not IEVisionAvailable() then
begin
  ShowMessage('This application requires the IEVision.dll plugin');
  Application.Terminate;
  exit;
end;


The ievision unit exports all interfaces and global methods, plus the IEVisionLib public field which encapsulates the factory class TIEVisionLibrary.

It is possible to encapsulate an ImageEn bitmap (TIEBitmap) inside a IEVision bitmap (TIEVisionImage), but it is necessary to change the TIEBitmap origin. For example:

ImageEnView1.IEBitmap.Origin := ieboTOPLEFT;
image := IEVisionLib.createImage(ImageEnView1.IEBitmap.Width, ImageEnView1.IEBitmap.Height,
                                 ievUINT8, 3, ImageEnView1.IEBitmap.Rowlen,
                                 ImageEnView1.IEBitmap.ScanLine[0]);

This way you can access all IEVision functions and share the results to a TImageEnView embedded image. It is also possible to create an IEVision image from scratch and then copy it to TIEBitmap or TImageEnView.

An alternative way is to use GetIEVisionImage which sets the bitmap origin and pixel format for you:

image := ImageEnView1.IEBitmap.GetIEVisionImage();



All IEVision objects are implemented as COM objects, so you don't need to handle object destruction (it is done automatically at runtime).
For example, if you create an IEVision image with:

image := IEVisionLib.createImage(1000, 1000, ievUINT8, 3);

You don't need to free or dispose it.
