Declaration
property PdfViewer: TIEPdfViewer;
Description
Provides access to the properties of the
TIEPdfViewer class, which allows viewing, editing and saving of PDF files (once
Enabled).
Features
* Custom ImageEn features (not available in standard PDFium)
Note:
◼The
PDFium plug-in DLL must exist in the same folder as your application EXE
◼Read more about
ImageEn PDF Support
◼You cannot use the
PdfViewer with multiple
layers unless you enable
AllowLayers
◼The size of the PDF page as displayed on-screen and when
output to bitmap is controlled by
IEGlobalSettings().PdfViewerDefaults.DPI
◼Requires Delphi/BCB 7 or newer
Mouse Interactions
Typically the following
mouse interactions are used with PdfViewer:
Interactions | Description |

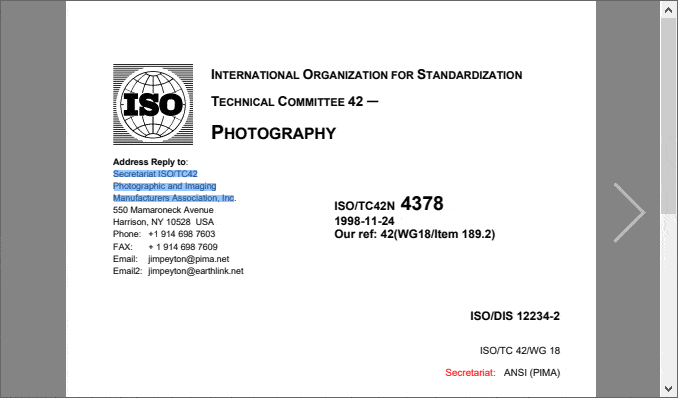

[ miPdfSelectText, miPdfSelectRgn ] | The user can select text or a region (as an image) based on what is under the cursor |
[ miPdfSelectText ] | The user can select text |
[ miPdfSelectRgn ] | The user can select a rectangular region (which can be copied to the clipboard as an image) |
[ miScroll, miZoom ] | The user can click and drag to scroll the page or left/right click to zoom in/out |
[ miPdfSelectObject ] | The user can select and edit objects of the PDF page |
[ miPdfSelectAnnotation ] | The user can select and edit annotations of the PDF page |
When enabling PdfViewer,
MouseInteractGeneral will be set to [miPdfSelectText, miPdfSelectRgn]. You can edit objects using miPdfSelectObject, and annotations using miPdfSelectAnnotation. miPdfSelectRgn, miPdfSelectObject and miPdfSelectAnnotation have no effect if
ShowAllPages is enabled.
The following
interactions are supported: miPdfSelectText, miScroll, miZoom, miSmoothZoom, miDblClickZoom, miMovingScroll. If not
showing all pages, you can also use: miPdfSelectRgn, miSelectZoom, miSelect, miSelectPolygon, miSelectCircle, miSelectMagicWand, miSelectLasso, miSelectChromaKey
All
layer interactions are disabled.

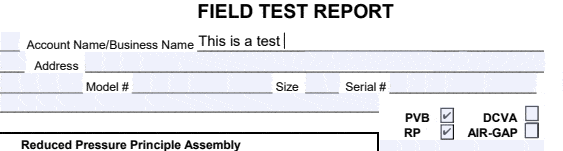

You can also use the mouse to edit form fields if you enable
AllowFormEditing.
Keyboard Shortcuts
The following keyboard shortcuts are also available (if
vkiPdfViewer is included in
KeyInteract):
Shortcut | Description |
Ctrl+C/X/V | Cut/Copy/Paste within a form field |
Ctrl+C | Copy selected text or image |
Ctrl+A | Select all text on page or in current form field |
PageUp/Down | Go to previous/next page |
Home/End | Go to first/last page |
Cursor keys | Scroll the image (requires vkiScrollView) |
Page Editing
Users can edit objects in a PDF page if you set
MouseInteractGeneral to [miPdfSelectObject] and enable
AllowObjectEditing, and edit annotations by setting
MouseInteractGeneral to [miPdfSelectAnnotation] and enabling
AllowAnnotationEditing.
When editing is enabled:
◼Objects and
annotations can be selected
◼Selected objects can be size and moved (by mouse or cursor keys)
◼Pressing Delete will remove the current object
◼Clipboard operations are supported, including pasting text or images from the clipboard (objects only, not annotations)
| Demos\PDF\PDFViewer\PdfViewer.dpr |
| Demos\Actions\Actions_PdfViewer\PdfViewerActions.dpr |
| Demos\PDF\PDFViewerToolbar\PdfViewerToolbar.dpr |
| Demos\PDF\PDFPageObjects\PDFPageObjects.dpr |
| Demos\PDF\PDFPageObjects_FromLayers\PDFPageObjectsLayers.dpr |
| Demos\PDF\PDFPageDragDrop\PDFPageDD.dpr |
| Demos\PDF\PDFFormFields\PdfViewerFF.dpr |
| Demos\PDF\PDFPrinter\PdfPrinter.dpr |
// Register the PDFium Plug-In
IEGlobalSettings().RegisterPlugIns([ iepiPDFium ]);
// Display a PDF document (and allow text and image selection, scaled viewing, etc)
ImageEnView1.PdfViewer.Enabled := True;
ImageEnView1.MouseInteractGeneral := [ miPdfSelectText, miPdfSelectRgn ];
ImageEnView1.IO.LoadFromFilePDF( 'C:\document.pdf' );
// Show all pages at once
ImageEnView1.PdfViewer.ShowAllPages := True;

// Enable form editing
ImageEnView1.PdfViewer.Enabled := True;
ImageEnView1.PdfViewer.AllowFormEditing := True;
ImageEnView1.IO.LoadFromFilePDF( 'C:\document.pdf' );

// Allow user to select images or text and copy to clipboard (automatically detecting selection based on what is under the cursor)
ImageEnView1.MouseInteractGeneral := [ miPdfSelectText, miPdfSelectRgn ];
ImageEnView1.PdfViewer.Enabled := True;
// Allow user to select text and copy to clipboard (image selection disabled)
ImageEnView1.MouseInteractGeneral := [ miPdfSelectText ];
ImageEnView1.PdfViewer.Enabled := True;
// Allow user to select images and copy to clipboard (text selection disabled)
ImageEnView1.MouseInteractGeneral := [ miPdfSelectRgn ];
ImageEnView1.PdfViewer.Enabled := True;

// Display a PDF document and allow editing of the page objects and annotations
ImageEnView1.PdfViewer.Enabled := True;
ImageEnView1.MouseInteractGeneral := [ miPdfSelectObject, miPdfSelectAnnotation ];
ImageEnView1.PdfViewer.AllowObjectEditing := True;
ImageEnView1.IO.LoadFromFilePDF( 'C:\document.pdf' );
// Merge two PDF documents
ImageEnView1.PdfViewer.Enabled := True;
ImageEnView1.IO.LoadFromFilePDF( 'C:\document.pdf' );
ImageEnView1.PdfViewer.ImportPages( 'C:\morepages.pdf' );
ImageEnView1.IO.SaveToFilePDF( 'C:\merged.pdf' );
// Move pages to the start of the document
ImageEnView1.PdfViewer.MovePages( [3, 4, 8, 9], 0);
// Delete pages from the document
ImageEnView1.PdfViewer.DeletePages([ 5, 6 ]);
// Prompt user to save changes
if ImageEnView1.PdfViewer.DocModified then
if MessageDlg( 'Save doc changes?', mtConfirmation, [ mbYes,mbNo ], 0 ) = mrYes then
ImageEnView1.IO.SaveToFilePDF( ImageEnView1.IO.Params.Filename );
// Rotate document right for display
ImageEnView1.PdfViewer.PageRotation := iepr90Clockwise;
// Find and select the text "Adobe"
ImageEnView1.PdfViewer.Find( 'Adobe' );
// Highlight the text "Adobe" thoughout the document
ImageEnView1.PdfViewer.HighlightText( 'Adobe' );
// Copy all text in the page to the clipboard
ImageEnView1.PdfViewer.SelectAll();
ImageEnView1.PdfViewer.CopyToClipboard();
// Save all text in the page to a file
ss := TStringList.Create;
ImageEnView1.LockPaint();
ImageEnView1.PdfViewer.SelectAll();
ss.Text := ImageEnView1.PdfViewer.SelText;
ImageEnView1.PdfViewer.ClearSelection();
ImageEnView1.UnlockPaint();
ss.SaveToFile( 'D:\Page.txt' );
ss.Free();
// Show thumbnail preview of all pages of a PDF document
ImageEnView1.PdfViewer.Enabled := True;
ImageEnMView1.AttachedImageEnView := ImageEnView1;
ImageEnView1.IO.LoadFromFilePDF( 'C:\document.pdf' );

// Display a PDF document and allow editing of the page objects and annotations
ImageEnView1.PdfViewer.Enabled := True;
ImageEnView1.MouseInteractGeneral := [ miPdfSelectObject, miPdfSelectAnnotation ];
ImageEnView1.PdfViewer.AllowObjectEditing := True;
ImageEnView1.IO.LoadFromFilePDF( 'C:\document.pdf' );
See Also
◼PDFium PlugIn
◼PdfViewerDefaults
